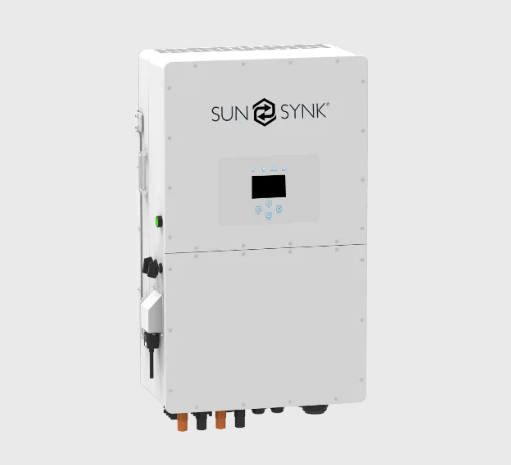

Sunsynk 20kW Inverter Three Phase

This versatile inverter is ideal for both home and business use and is scalable, so you can expand it as required. With inputs for PV solar, AC grid power, batteries and a generator, this inverter can deliver a continuous power output of 20000W.

This three-phase inverter can charge both lead-acid and lithium-ion batteries, and innovatively works to balance the load across the three phases to avoid overloading. With seamless energy load balancing, this inverter can handle a load distribution of 20% on one phase, 20% on another, and 60% on the third phase, while still delivering perfect phase rotation.

Key features:

• Easy-to-understand display
• Supports Wi-Fi or GSM monitoring
• Compatible with lithium-ion and lead-acid batteries
• Smart-settable three-stage MPPT charging for optimised battery performance
• Compatible with mains electrical grid voltages, power generators or wind turbines
• DC- and AC-coupled to retrofit to existing solar system
• Programmable supply priority for battery or grid
• High reliability and response speed
• Programmable export
• Works on or off-grid and with up to sixteen modules in parallel
• Can operate in single-phase or three-phase mode
• Dimensions: 408mm (W) x 638mm (H) x 237mm (D)
• Weight: 38.5kg
• Rated IP65 for ingress protection
• Five-year standard warranty
