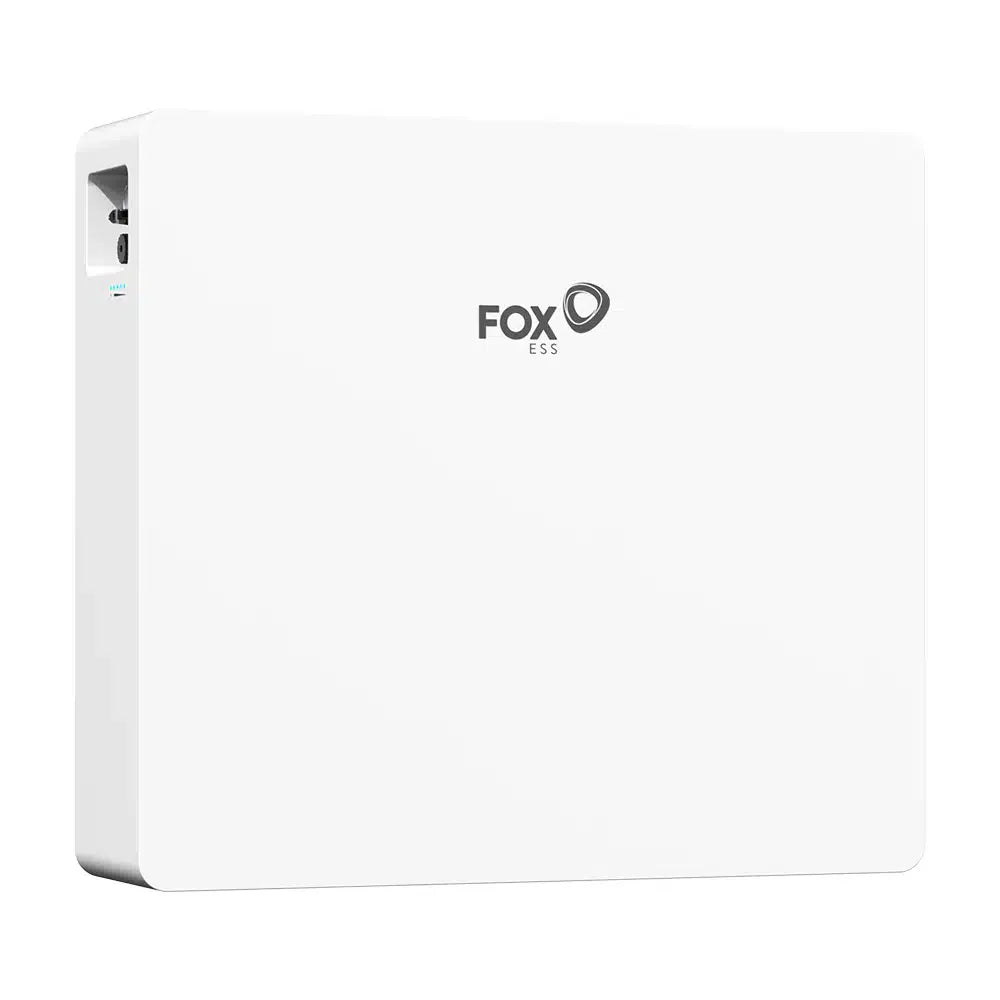

Fox ESS EP12 11.52kWh 384V Battery with Heating Element
The Fox ESS EP12 11.52kWh 384V Battery with Heating Element is a high-voltage lithium iron phosphate (LiFePO₄) battery designed for use with Fox ESS hybrid inverter systems. With integrated heating technology, high safety performance and scalable storage capacity, it provides reliable energy storage for residential solar applications.
| Specification | Details |
|---|---|
| Product Type | High Voltage Battery Storage |
| Model | EP12 |
| Battery Chemistry | Lithium Iron Phosphate (LiFePO₄) |
| Nominal Energy | 11.52kWh |
| Usable Energy | 10.37kWh |
| Nominal Voltage | 384V |
| Operating Voltage Range | 300–438V |
| Maximum Charge Current | 30A |
| Maximum Discharge Current | 30A |
| Depth of Discharge (DoD) | 90% |
| Cycle Life | ≥6000 Cycles |
| Heating Function | Integrated Heating Element |
| Operating Temperature | -10°C to +50°C |
| Battery Type | High Voltage LiFePO₄ |
| Communication | CAN / RS485 |
| Protection Rating | IP65 |
| Installation | Floor Mounted |
| Scalability | Expandable with additional EP battery modules |
| Dimensions (W × H × D) | 710 x 640 x 185mm |
| Weight | 98kg |
| Warranty | 10 Years |
