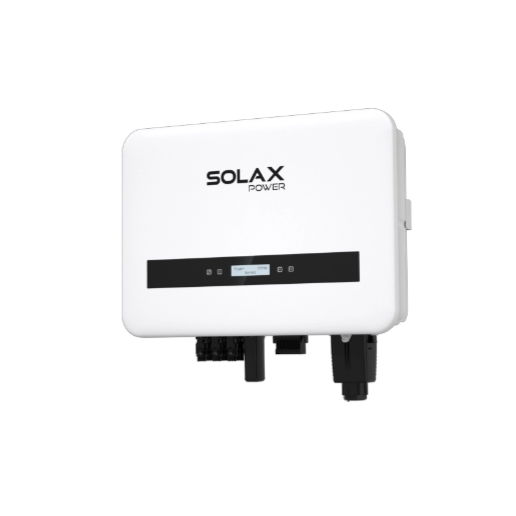

SolaX X1 Smart G2 10kW Single Phase Inverter
The SolaX X1 SMART G2 10kW Single Phase Inverter is a high-performance solar inverter designed for larger residential PV systems. Equipped with three independent MPPT trackers, up to 200% PV oversizing capability and integrated WiFi monitoring, it maximises energy generation while providing exceptional installation flexibility. Featuring an IP66-rated enclosure, advanced safety functions including optional AFCI protection and intelligent energy management, the X1 SMART G2 delivers reliable, efficient performance for modern home solar installations.
| AC Attribute | Specification |
|---|---|
| Rated Output Power | 9999W |
| Maximum Apparent Power | 11000VA |
| Rated Output Current | 43.5A |
| Maximum Continuous Output Current | 47.8A |
| Number of Phases | 1 |
| Rated Voltage | 220 / 230 / 240V AC |
| Frequency | 50Hz / 60Hz |
| Power Factor | 1 (adjustable 0.8 leading to 0.8 lagging) |
| THDi | <3% |
| DC Attribute | Specification |
|---|---|
| Max PV Power | 20kWp |
| Max Input Voltage | 600V |
| Nominal PV Voltage | 360V |
| MPPT Voltage Range | 40 - 560V |
| Start-Up Voltage | 50V |
| Number of MPPTs | 3 |
| Strings per MPPT | 1 / 1 / 1 |
| Max Input Current per MPPT | 20A / 20A / 20A |
| Max Short Circuit Current per MPPT | 25A / 25A / 25A |
