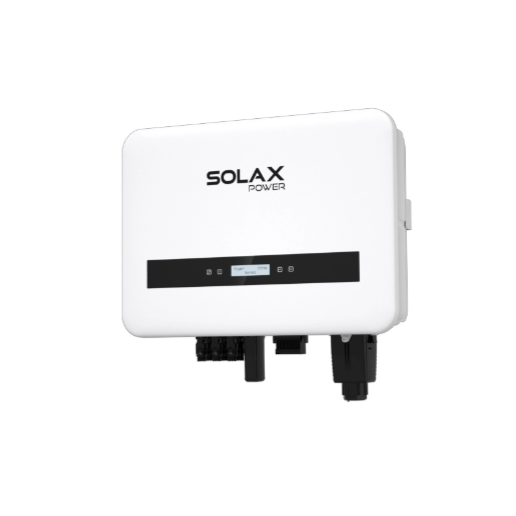

The SolaX X1 SMART G2 7kW Single Phase Inverter is a powerful and intelligent string inverter designed for larger residential solar PV systems. Featuring three independent MPPT trackers, up to 200% PV oversizing capability and integrated WiFi monitoring, it maximises energy generation while providing exceptional installation flexibility. With an IP66-rated enclosure, optional AFCI protection and advanced smart energy management features, the X1 SMART G2 delivers reliable, efficient performance for modern home solar installations.
| AC Attribute |
Specification |
| Rated Output Power |
7000W |
| Maximum Apparent Power |
7700VA |
| Rated Output Current |
30.5A |
| Maximum Continuous Output Current |
35.0A |
| Number of Phases |
1 |
| Rated Voltage |
220 / 230 / 240V AC |
| Frequency |
50Hz / 60Hz |
| Power Factor |
1 (adjustable 0.8 leading to 0.8 lagging) |
| THDi |
<3% |
| DC Attribute |
Specification |
| Max PV Power |
14kWp |
| Max Input Voltage |
600V |
| Nominal PV Voltage |
360V |
| MPPT Voltage Range |
40 - 560V |
| Start-Up Voltage |
50V |
| Number of MPPTs |
3 |
| Strings per MPPT |
1 / 1 / 1 |
| Max Input Current per MPPT |
20A / 20A / 20A |
| Max Short Circuit Current per MPPT |
25A / 25A / 25A |
