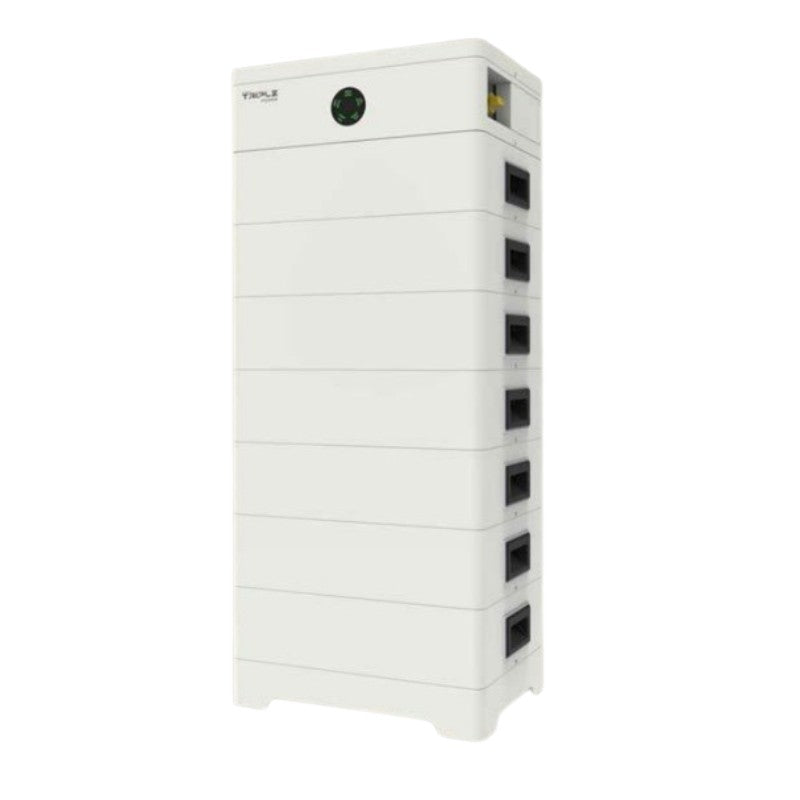

SolaX TP-HS3.6 3.6kWh Battery

Name: SolaX TP-HS3.6 3.6kWh Battery
Brand: SolaX
SKU: Triple-Power-5.8kWh-Master
Price: 743.36 GBP
Availability: InStock

Please sign-in to see prices and add to cart button

The SolaX TP-HS3.6 3.6kWh Battery is a high-voltage lithium iron phosphate (LiFePO₄) battery module designed for the SolaX Triple Power HS energy storage system. Offering safe, reliable and scalable energy storage, it can be combined with additional HS3.6 modules to create systems of up to 46.8kWh. With an IP65-rated enclosure, integrated heating for low-temperature operation and a long service life of over 6,000 cycles, it is an ideal solution for residential and commercial solar storage applications.

Battery Attribute	Specification
Battery Chemistry	Lithium Iron Phosphate (LiFePO₄)
Nominal Capacity	3.6kWh
Usable Capacity	3.24kWh (90% DoD)
Nominal Voltage	51.2V
Operating Voltage Range	45–58V
Depth of Discharge	90%
Recommended Charge / Discharge Current	35A
Maximum Charge / Discharge Current	50A
Communication	CAN, RS485 (via BMU)
Scalability	2–13 battery modules

In stock

Quantity:

Key features

3.6kWh LiFePO₄ battery module for SolaX Triple Power HS systems.
Expandable from 7.2kWh to 46.8kWh by stacking up to 13 battery modules.
90% usable depth of discharge for efficient energy storage.
IP65-rated enclosure suitable for indoor and outdoor installations.
Over 6,000 charge cycles with a 10-year warranty.

Weight

33.5kg

Dimensions

510 × 365 × 152mm

Product code

TP-HS3.6

Warranty

10 Years
