H5000 and IP65 B5000

Name: H5000 and IP65 B5000
Brand: Hinen
Price: 1363.09 GBP
Availability: InStock

Please sign-in to see prices and add to cart button

The Hinen H5000 Hybrid Inverter combined with the IP65 B5000 5kWh Low-Voltage Battery provides a powerful, intelligent, and scalable solar energy storage solution designed for modern residential energy systems. This complete package enables homeowners to maximise solar self-consumption, store excess energy, reduce grid dependency, and maintain reliable backup power.

Featuring advanced hybrid inverter technology and safe LiFePO₄ battery storage, the H5000 and B5000 combination delivers high efficiency, intelligent energy management, and long-term reliability for residential solar applications.

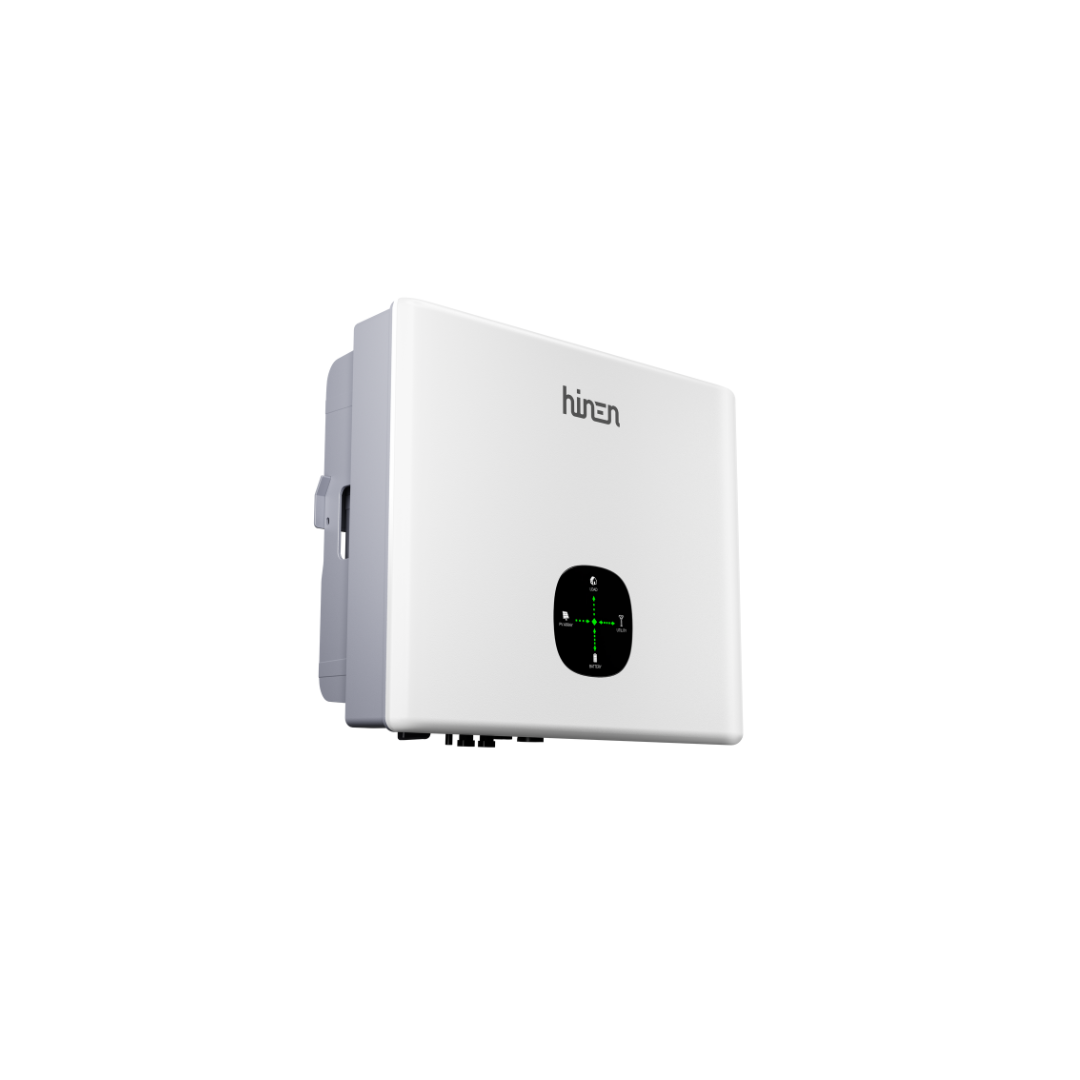

Hinen H5000 Hybrid Inverter

The Hinen H5000 Hybrid Inverter is designed for high-performance solar energy management, supporting up to 190% PV oversizing with a maximum 10kW PV input. This allows greater solar generation capacity and improved energy harvesting throughout the day.

The H5000 supports intelligent integration of AC-coupled, DC-coupled, and hybrid operating modes, providing flexible installation options for new solar systems and energy storage upgrades. Multiple operating modes can be customised through the Hinen APP to optimise energy usage and maximise efficiency.

Built with an integrated die-cast design and waterproof connectors, the inverter features an IP65 dustproof and waterproof enclosure, making it suitable for a wide range of installation environments. Its fanless cooling system provides ultra-quiet operation with noise levels of ≤25dB.

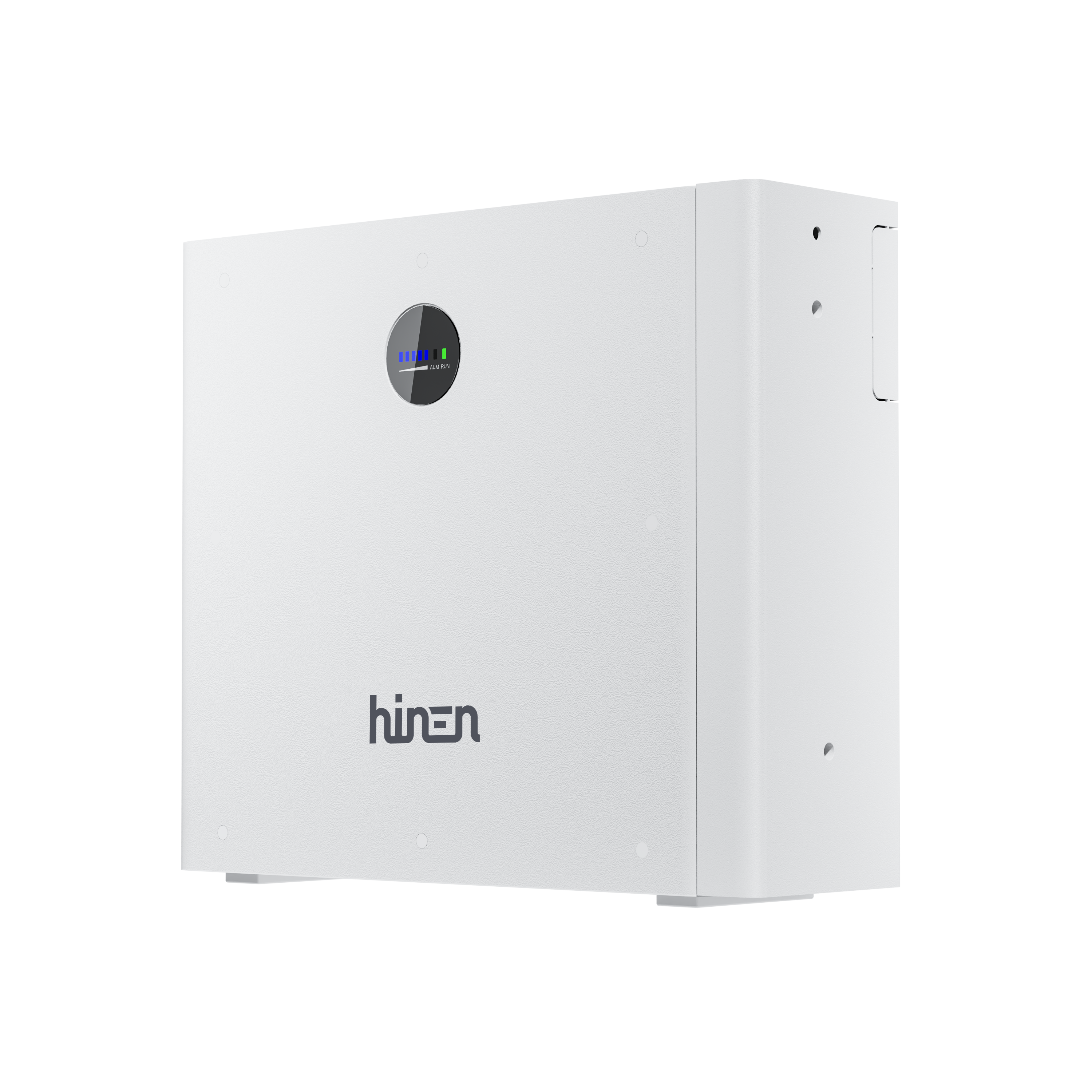

Hinen IP65 B5000 5kWh Low-Voltage Battery

The Hinen B5000 Low-Voltage Battery delivers safe and reliable energy storage using advanced LiFePO₄ battery technology. With a rugged IP65-rated enclosure, the battery is designed to perform reliably in demanding environments while providing long-term energy storage for residential solar systems.

The modular battery design allows storage capacity to expand from 5kWh up to 30kWh, providing flexibility for changing household energy requirements.

Complete Home Energy Storage Solution

The Hinen H5000 Hybrid Inverter with the IP65 B5000 Battery provides a reliable, efficient, and expandable energy storage solution for homeowners looking to maximise renewable energy usage, improve energy independence, and secure backup power.

System Includes:

1 × Hinen H5000 Hybrid Inverter
1 × Hinen IP65 B5000 5kWh Low-Voltage Battery
Total Battery Capacity: 5.12kWh
Expandable up to 30kWh

In stock

Quantity:

Key features

H5000 Hybrid Inverter Features:

Supports over 190% PV input oversizing
Maximum 10kW PV input
Supports parallel grid-connected operation of two inverters
AC-coupled, DC-coupled, and hybrid operating modes
Multiple energy modes configurable via Hinen APP
Maximum 16A MPPT current per PV string
120A continuous battery charge and discharge current
EPS backup transfer time of less than 20ms
Fanless ultra-quiet operation (≤25dB)
IP65 dustproof and waterproof protection
Integrated protection system:
PV disconnection protection
Ground fault protection
DC bus protection
Type II DC SPD and Type III AC SPD

Battery Storage Features:

5.12kWh battery capacity
Expandable storage from 5–30kWh
Advanced LiFePO4 battery chemistry
IP65 dustproof and waterproof protection
5-layer safety protection system:
Full coverage temperature detection
Intelligent BMS control with over-temperature, over-current, and over-voltage protection
Built-in physical short-circuit protection
Internal aerosol fire extinguisher
Decompression valve
Operating temperature range: -20°C to 55°C
Supports 1C charge and discharge rate
Visible energy tracking and remote upgrades via Hinen APP

Downloads

B5000 Datasheet Download

B5000 User Manual Download
