H5000 and 2x IP54 BP5000P and Accessory Kit

The Hinen H5000 Hybrid Inverter combined with 2 × IP54 BP5000P 5kWh Low-Voltage Batteries and the compatible Hinen Accessory Kit delivers a powerful, intelligent, and expandable solar energy storage solution for modern residential applications.

With a total battery capacity of 10.24kWh, this complete energy storage system enables homeowners to maximise solar self-consumption, store more excess renewable energy, reduce reliance on the grid, and maintain dependable backup power. Combining advanced hybrid inverter technology with Hinen's modular stackable battery design creates an efficient and future-ready energy storage solution.

Hinen H5000 Hybrid Inverter

The Hinen H5000 Hybrid Inverter delivers high-performance energy management with support for over 190% PV oversizing and a maximum 10kW PV input, allowing greater solar generation and improved overall system efficiency.

Supporting intelligent integration of AC-coupled, DC-coupled, and hybrid operating modes, the H5000 provides flexible installation options for both new solar PV systems and retrofit battery storage applications. Multiple work modes can be configured through the Hinen APP to optimise energy usage and maximise efficiency.

Built with an integrated die-cast construction and waterproof connectors, the inverter features an IP65 dustproof and waterproof enclosure, ensuring reliable operation in all weather conditions. Its fanless cooling system delivers ultra-quiet performance with running noise levels of ≤25dB.

H5000 Hybrid Inverter Features:

• Supports over 190% PV input oversizing
• Maximum 10kW PV input
• Supports parallel grid-connected operation of two inverters
• Intelligent integration of AC-coupled, DC-coupled, and hybrid operating modes
• Multiple work modes configurable via Hinen APP
• Maximum 16A MPPT current per PV string
• 120A continuous battery charge and discharge current
• EPS backup transfer time of less than 20ms
• Fanless ultra-quiet operation (≤25dB)
• IP65 dustproof and waterproof protection
• Integrated inverter protection:
  • PV disconnection protection
  • Ground fault protection
  • DC bus protection
  • Type II DC SPD and Type III AC SPD

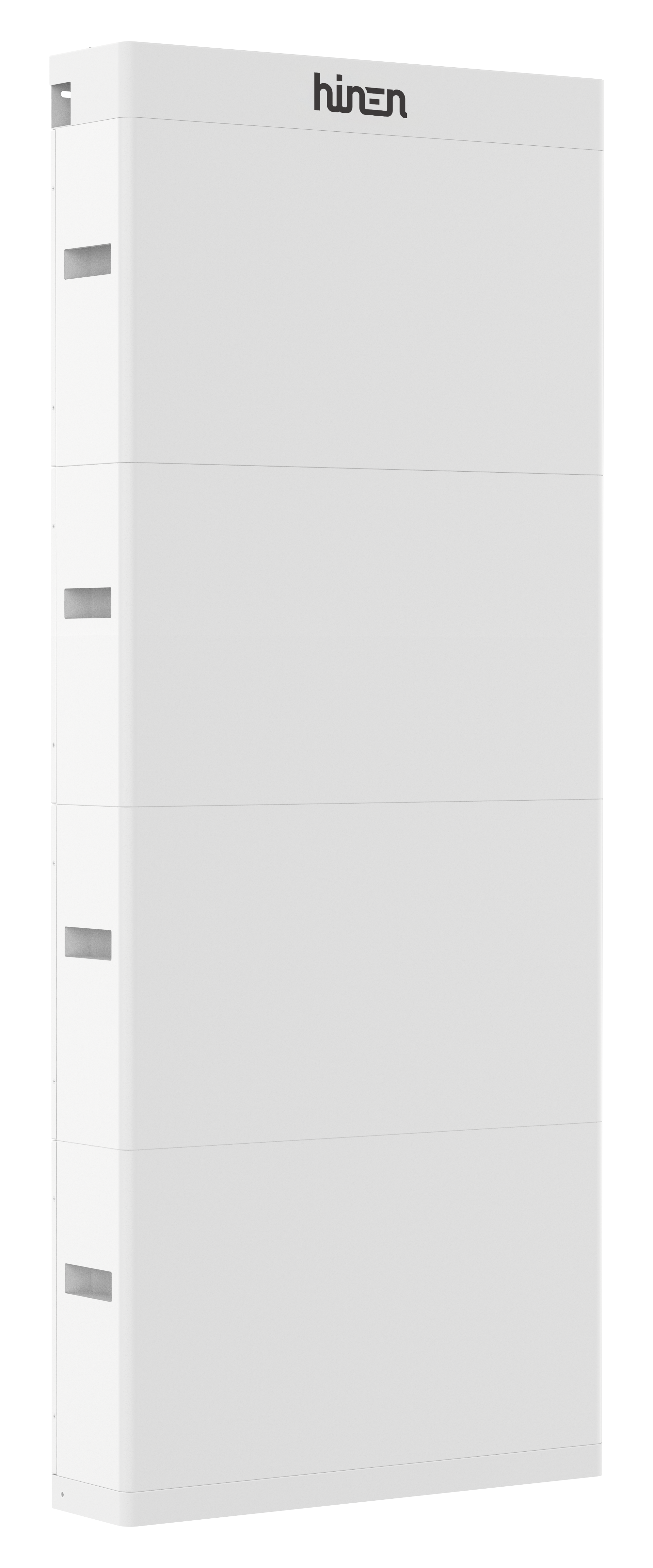

2 × Hinen IP54 BP5000P 5kWh Low-Voltage Batteries

The two BP5000P battery modules provide a combined energy storage capacity of 10.24kWh, making this system ideal for homes with increased electricity usage and greater backup power requirements. The integrated stackable design enables fast plug-and-play installation with no additional battery interconnection cables required.

The modular battery architecture supports flexible expansion from 5kWh up to 120kWh by connecting up to 24 battery modules, providing a scalable solution that grows alongside your household's energy requirements.

An automatic single battery fault isolation function helps maintain continuous system performance by isolating an individual battery module if a fault occurs, reducing downtime and improving overall system reliability.

BP5000P Battery Features:

• 10.24kWh total battery storage capacity
• Two × 5.12kWh BP5000P battery modules
• Stackable integrated design with plug-and-play installation
• No additional battery interconnection cables required
• Expandable storage capacity from 5kWh to 120kWh (1–24 battery modules)
• Automatic single battery fault isolation function
• Operating temperature range: -20°C to 60°C
• 5-layer battery safety protection system:
  • Full coverage temperature detection
  • Intelligent BMS control with over-temperature, over-current, and over-voltage protection
  • Built-in physical short-circuit protection
  • Internal aerosol fire extinguisher
  • Decompression valve
• Visible energy tracking and remote upgrades via Hinen APP

Hinen Battery Accessory Kit

The included Hinen Battery Accessory Kit provides all required components for a secure, stable, and professional installation of the BP5000P battery system. Designed specifically for the IP54 BP5000P range, it ensures correct battery alignment, secure installation, and a clean finish for residential energy storage systems.

Accessory Kit Features:

• Designed specifically for Hinen BP5000P battery systems
• Provides secure and stable battery installation
• Supports correct battery positioning and spacing
• Professional finish for residential energy storage installations
• Compatible with scalable multi-battery configurations

Complete 10kWh Home Energy Storage Solution

The Hinen H5000 Hybrid Inverter with 2 × IP54 BP5000P Batteries and Accessory Kit delivers a complete, efficient, and expandable energy storage solution for homeowners seeking greater energy independence, improved solar utilisation, and reliable backup power.

System Includes:

• 1 × Hinen H5000 Hybrid Inverter
• 2 × Hinen IP54 BP5000P 5kWh Low-Voltage Batteries
• 1 × Hinen Battery Accessory Kit
• Total Battery Capacity: 10.24kWh
• Expandable storage capability up to 120kWh
