Hinen

H3600 and IP65 B5000

Name: H3600 and IP65 B5000
Brand: Hinen
Price: 1355.36 GBP
Availability: InStock

Please sign-in to see prices and add to cart button

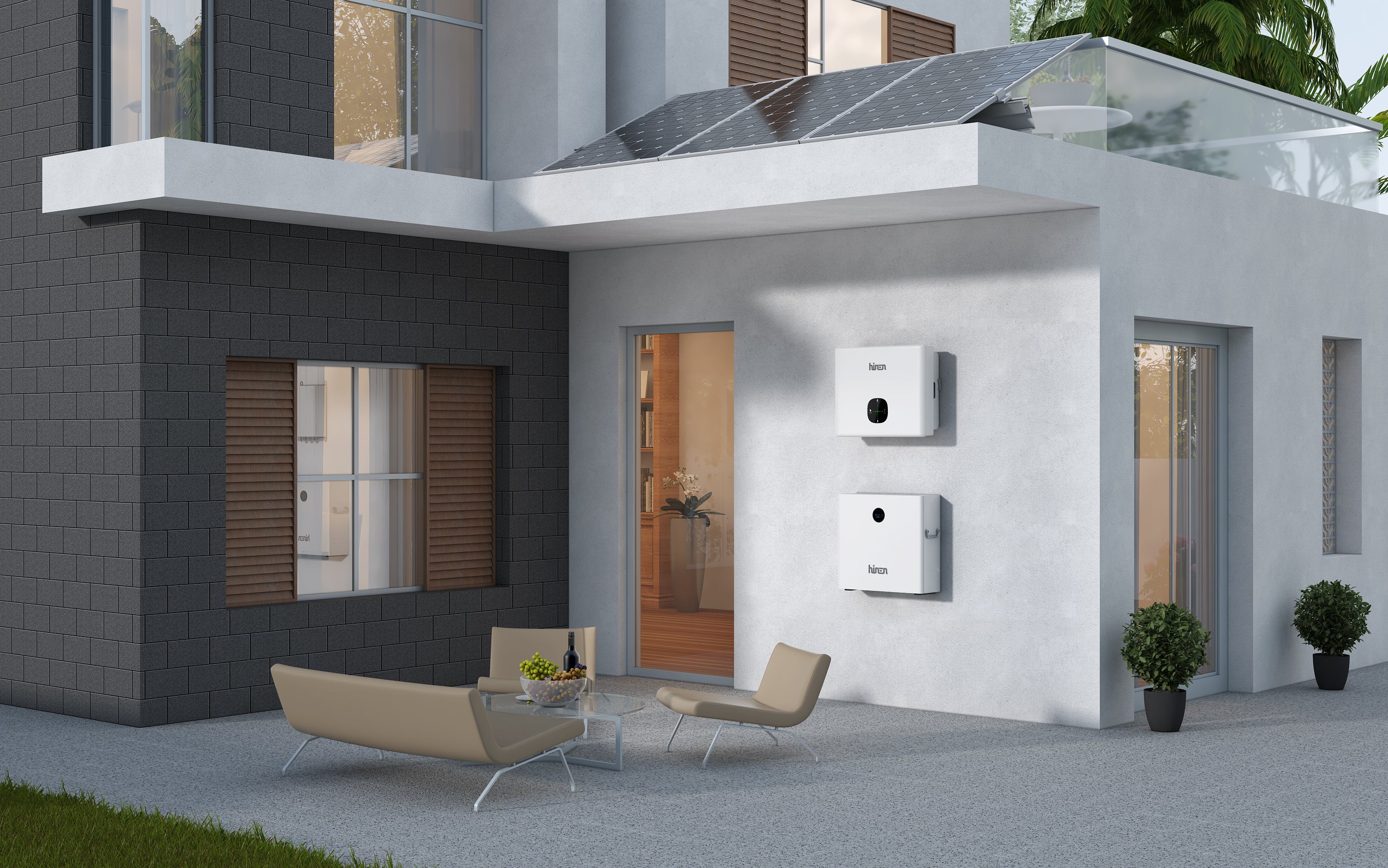

Hinen H3600 Hybrid Inverter & IP65 B5000 5kWh Low-Voltage Battery System

The Hinen H3600 Hybrid Inverter combined with the IP65 B5000 Low-Voltage Battery delivers a powerful, intelligent, and scalable energy storage solution designed for modern residential solar systems. This advanced hybrid system enables homeowners to maximise solar energy usage, reduce grid reliance, and maintain reliable backup power.

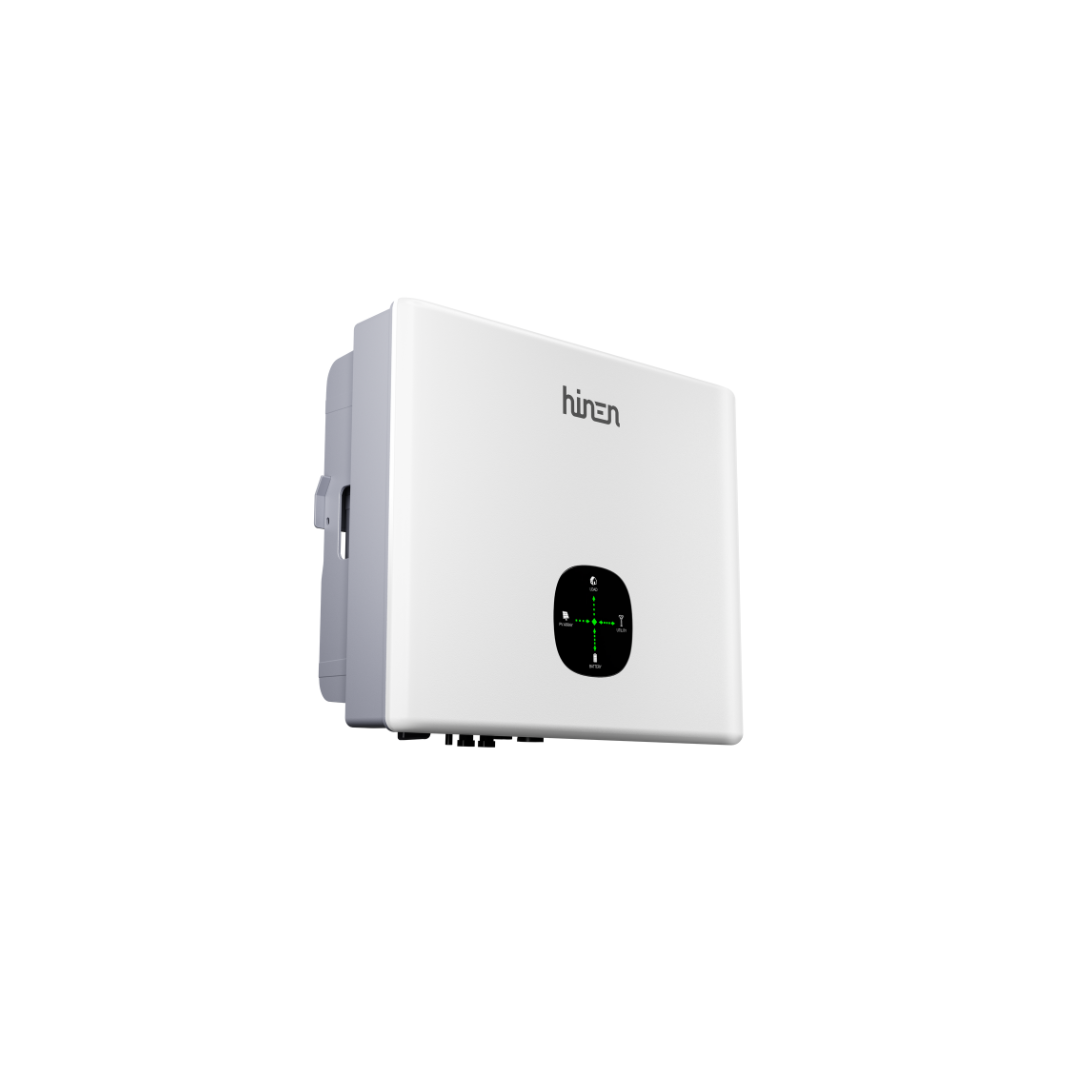

Hinen H3600 Hybrid Inverter

The H3600 hybrid inverter is designed for high-performance solar energy management, supporting up to 190% PV oversizing with a maximum 7.2kW PV input, allowing greater solar generation and improved energy harvesting throughout the day.

Featuring intelligent AC-coupled, DC-coupled, and hybrid operating modes, the H3600 provides flexible system configurations to suit different energy requirements. Multiple operating modes can be customised through the Hinen APP, helping optimise energy usage and maximise efficiency.

The inverter features a robust IP65-rated waterproof and dustproof design, making it suitable for a wide range of installation environments. Its fanless cooling design provides ultra-quiet operation with noise levels below 25dB, ensuring comfortable residential use.

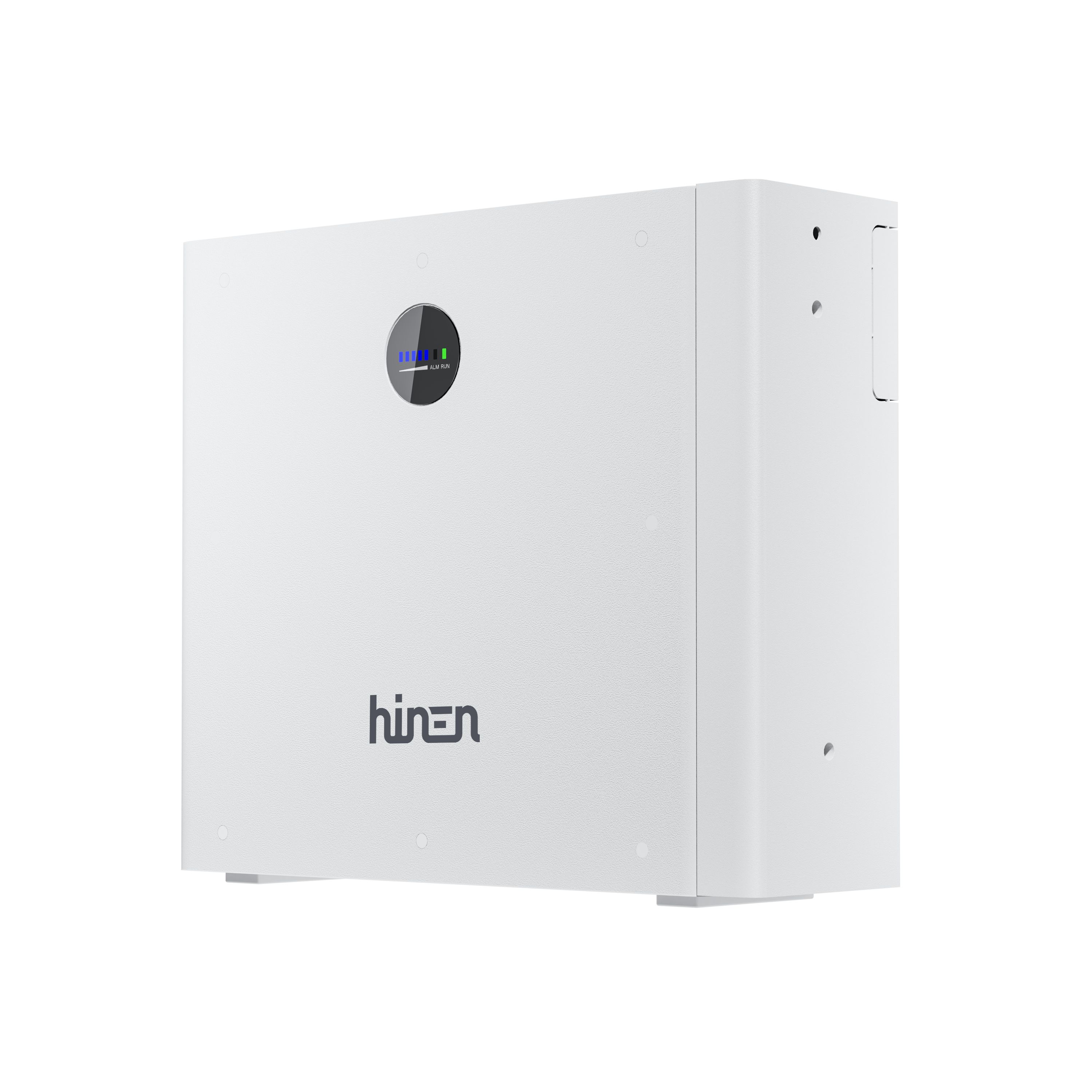

Hinen IP65 B5000 5kWh Low-Voltage Battery

The Hinen B5000 battery provides safe, reliable, and expandable energy storage using advanced lithium battery technology. With a rugged IP65-rated enclosure, it is designed to withstand challenging environments while delivering dependable performance for residential energy storage applications.

The battery features a five-layer safety protection system, including advanced temperature monitoring, intelligent BMS control, physical short-circuit protection, internal aerosol fire suppression, and a pressure relief valve for enhanced safety.

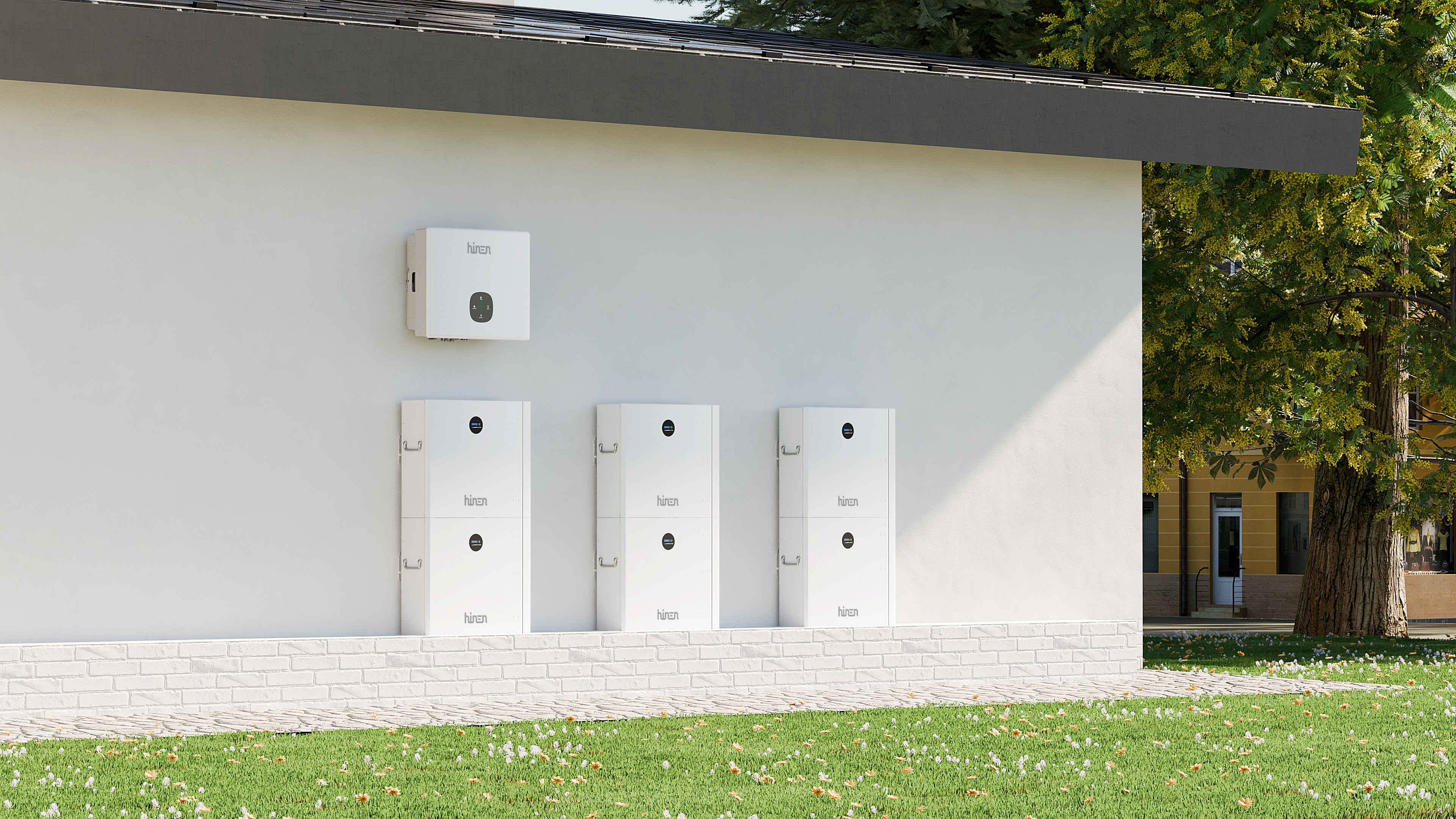

With a scalable capacity from 5kWh to 30kWh, the B5000 system can grow alongside your energy needs. The Hinen APP provides real-time energy monitoring, system visibility, and remote upgrades for convenient management.

In stock

Quantity:

Key features

H3600 Key Features:

Supports up to 190% PV input oversizing
Maximum 7.2kW PV input power
Up to 16A MPPT current per PV string
Intelligent AC-coupled, DC-coupled, and hybrid operation modes
Parallel grid-connected operation support for two inverters
Up to 120A continuous battery charge/discharge current
EPS backup transfer time of less than 20ms
Fanless ultra-quiet operation (≤25dB)
Integrated protection features:PV disconnection protectionGround fault protectionDC bus protectionType II DC SPD and Type III AC SPD protection

B5000 Key Features:

5kWh low-voltage battery module
Expandable storage capacity from 5–30kWh
IP65 dustproof and waterproof protection
Advanced 5-layer battery safety protection system
Intelligent BMS monitoring and protection
Operating temperature range: -20°C to 55°C
Supports 1C charge and discharge rate
Remote monitoring and firmware updates via Hinen APP
