H3600 and 4x IP65 B5000

Name: H3600 and 4x IP65 B5000
Brand: Hinen
Price: 3694.08 GBP
Availability: InStock

Please sign-in to see prices and add to cart button

The Hinen H3600 Hybrid Inverter combined with four IP65 B5000 5kWh Low-Voltage Batteries provides a high-capacity, intelligent solar energy storage solution designed for larger residential properties and higher energy consumption requirements. With a total battery capacity of 20.48kWh, this system enables homeowners to store more solar energy, maximise self-consumption, reduce electricity costs, and improve energy independence.

This complete energy storage package combines advanced hybrid inverter technology with safe and reliable LiFePO₄ battery storage, delivering efficient energy management, long-term reliability, and scalable storage for future energy needs.

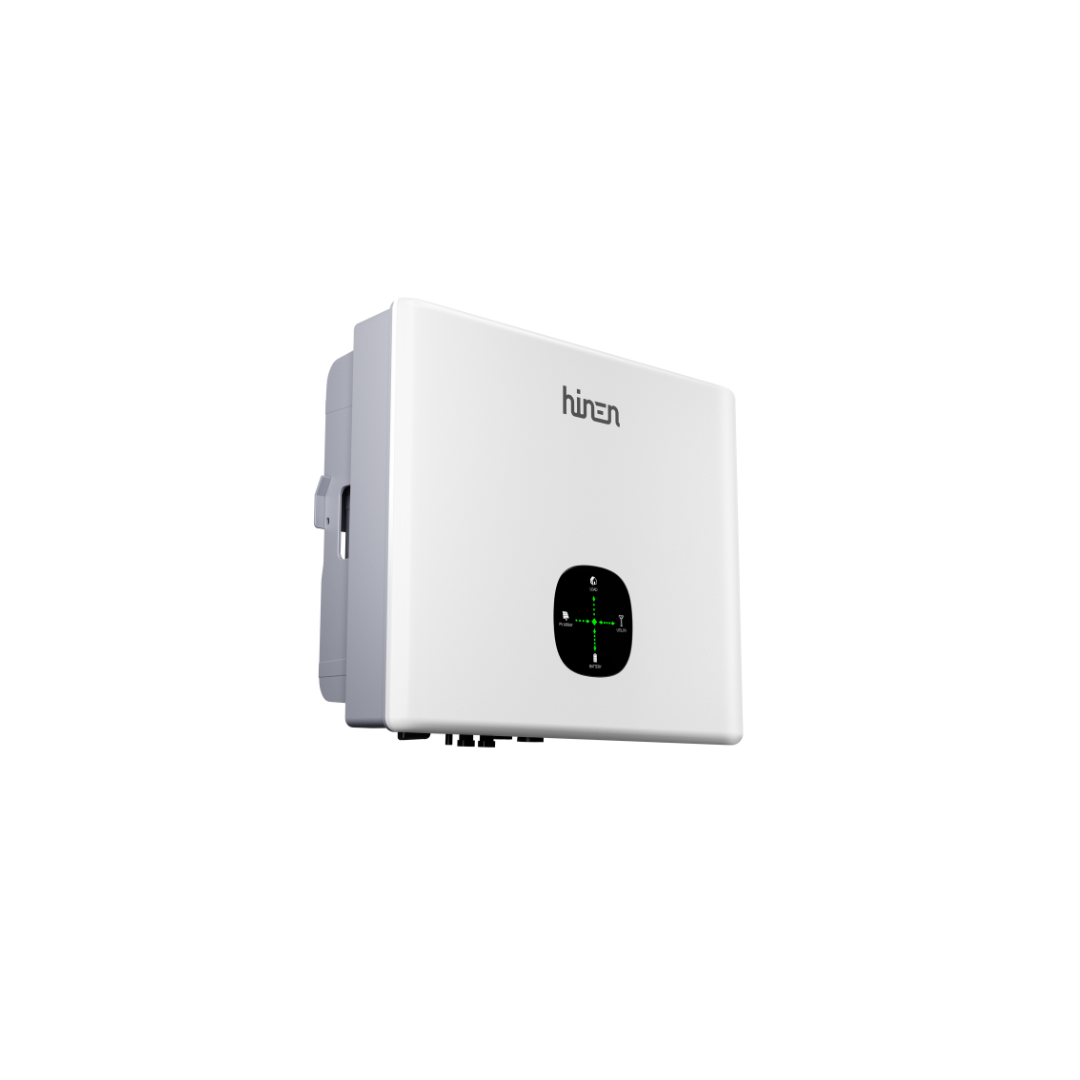

Hinen H3600 Hybrid Inverter

The Hinen H3600 Hybrid Inverter provides intelligent control of solar generation, battery storage, and household energy usage. Supporting up to 190% PV oversizing with a maximum 7.2kW PV input, the H3600 allows increased solar harvesting and improved system efficiency throughout the day.

Supporting AC-coupled, DC-coupled, and hybrid operating modes, the H3600 offers flexible installation options for new solar systems and energy storage upgrades. Multiple operating modes can be configured through the Hinen APP, allowing users to optimise energy usage and maximise system performance.

Featuring an IP65-rated dustproof and waterproof enclosure, the inverter is designed for reliable operation in a wide range of environments. The fanless cooling design ensures ultra-quiet performance, making it suitable for residential installations.

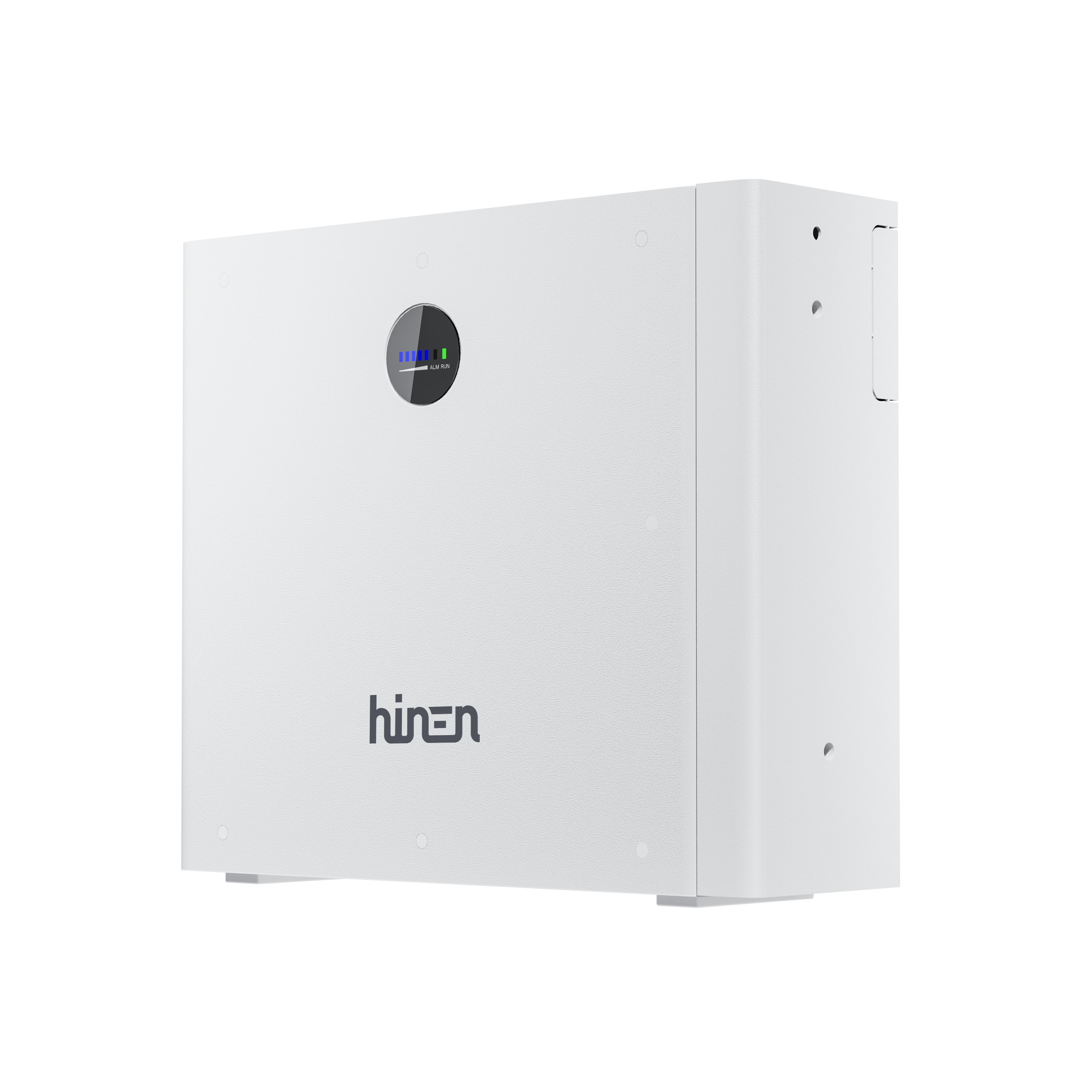

4 × Hinen IP65 B5000 5kWh Low-Voltage Batteries

The four Hinen B5000 battery modules provide a combined energy storage capacity of 20.48kWh, offering increased storage capacity for larger homes requiring extended solar energy usage and enhanced backup power capability.

Built with advanced LiFePO₄ battery technology, the B5000 delivers excellent safety, durability, and long cycle life. The rugged IP65-rated enclosure provides protection against dust and water ingress, ensuring reliable performance in demanding installation environments.

The modular battery design allows the system to expand alongside future energy requirements, supporting storage expansion from 5kWh up to 30kWh.

System Includes:

1 × Hinen H3600 Hybrid Inverter
4 × Hinen IP65 B5000 5kWh Low-Voltage Batteries
Total Battery Capacity: 20.48kWh
Expandable storage capability up to 30kWh

In stock

Quantity:

Key features

H3600 Hybrid Inverter Features:

Supports up to 190% PV input oversizing
Maximum 7.2kW PV input
Supports parallel grid-connected operation of two inverters
Intelligent AC-coupled, DC-coupled, and hybrid modes
Multiple energy management modes via Hinen APP
Maximum 16A MPPT current per PV string
120A continuous battery charge and discharge current
EPS backup transfer time of less than 20ms
Fanless ultra-quiet operation (≤25dB)
IP65 dustproof and waterproof protection
Integrated protection features:

PV disconnection protection
Ground fault protection
DC bus protection
Type II DC SPD and Type III AC SPD

Battery Features:

20.48kWh total battery storage capacity
Four × 5.12kWh B5000 battery modules
Advanced LiFePO4 battery chemistry
IP65 dustproof and waterproof protection
5-layer battery safety protection system:

Full coverage temperature detection
Intelligent BMS control with over-temperature, over-current, and over-voltage protection
Built-in physical short-circuit protection
Internal aerosol fire extinguisher
Decompression valve
Operating temperature range: -20°C to 55°C
Supports 1C charge and discharge rate
Remote monitoring and firmware updates through Hinen APP
