H3600 and 4x IP54 BP5000P and Accessory Kit

The Hinen H3600 Hybrid Inverter combined with 4 × IP54 BP5000P 5kWh Low-Voltage Batteries and the compatible Hinen Accessory Kit delivers a high-capacity, intelligent, and scalable solar energy storage solution for larger homes and households with increased energy demands.

With a total battery capacity of 20.48kWh, this complete system enables homeowners to store more excess solar energy, maximise renewable energy usage, reduce reliance on the grid, and maintain dependable backup power. Combining advanced hybrid inverter technology with Hinen's modular stackable battery system provides efficient energy management, simplified installation, and future-ready scalability.

Hinen H3600 Hybrid Inverter

The Hinen H3600 Hybrid Inverter delivers high-performance solar energy management with support for over 190% PV oversizing and a maximum 7.2kW PV input. It intelligently manages solar generation, battery storage, household consumption, grid interaction, and backup power to maximise overall system efficiency.

Supporting AC-coupled, DC-coupled, and hybrid operating modes, the H3600 offers flexible installation options for both new solar PV systems and retrofit battery storage applications. Multiple operating modes can be configured through the Hinen APP, allowing users to customise energy management and maximise efficiency.

Featuring an integrated die-cast construction with waterproof connectors, the inverter is protected by an IP65 dustproof and waterproof enclosure, ensuring reliable operation in all weather conditions. The fanless cooling design provides ultra-quiet operation with running noise levels of ≤25dB.

H3600 Hybrid Inverter Features:

• Supports over 190% PV input oversizing
• Maximum 7.2kW PV input
• Supports parallel grid-connected operation of two inverters
• Intelligent integration of AC-coupled, DC-coupled, and hybrid operating modes
• Multiple work modes configurable via Hinen APP
• Maximum 16A MPPT current per PV string
• 120A continuous battery charge and discharge current
• EPS backup transfer time of less than 20ms
• Fanless ultra-quiet operation (≤25dB)
• IP65 dustproof and waterproof protection
• Integrated inverter protection:
  • PV disconnection protection
  • Ground fault protection
  • DC bus protection
  • Type II DC SPD and Type III AC SPD

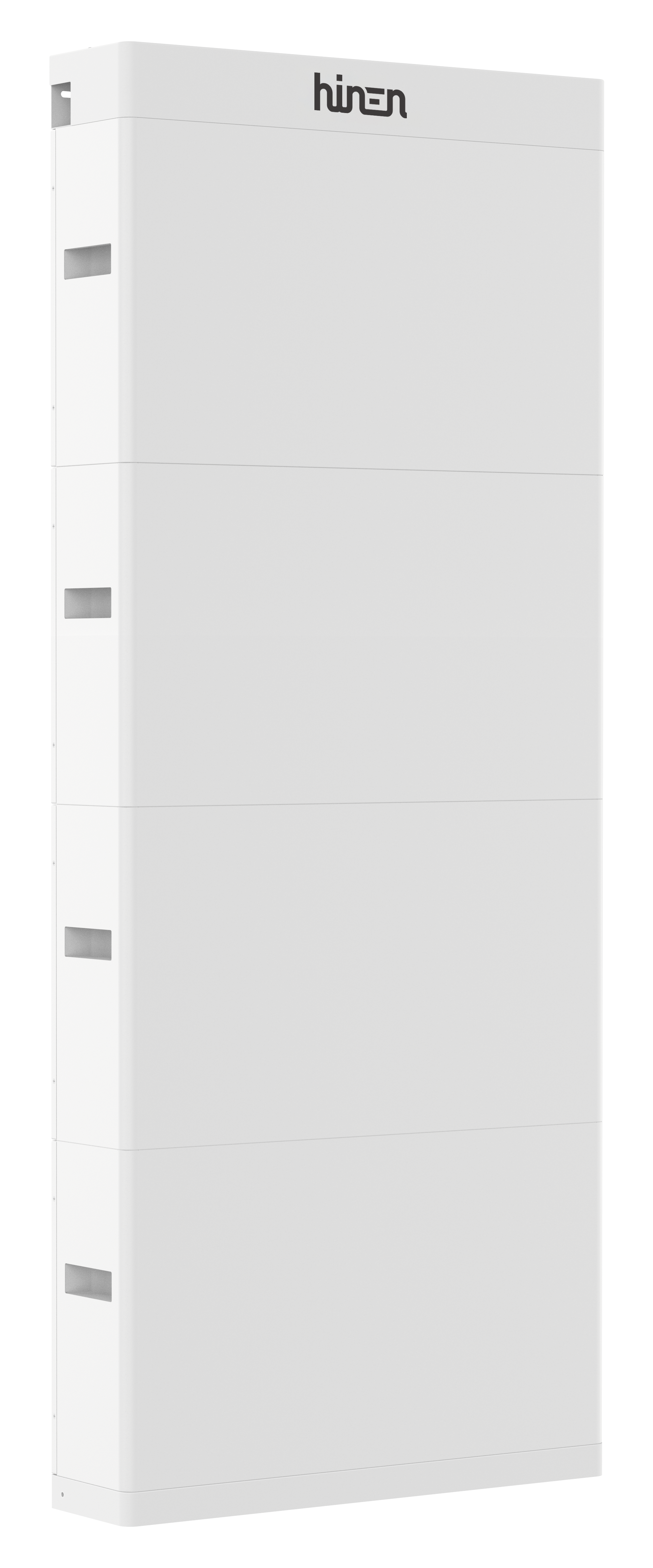

4 × Hinen IP54 BP5000P 5kWh Low-Voltage Batteries

The four BP5000P battery modules provide a combined energy storage capacity of 20.48kWh, making this system ideal for larger households with higher electricity consumption and increased backup power requirements. The integrated stackable design enables fast plug-and-play installation with no additional battery interconnection cables required.

The modular battery architecture allows storage capacity to expand from 5kWh up to 120kWh by connecting up to 24 battery modules, providing a future-proof solution that grows with changing energy demands.

An automatic single battery fault isolation function helps maintain continuous system operation by isolating an individual battery module should a fault occur, improving overall reliability and minimising downtime.

BP5000P Battery Features:

• 20.48kWh total battery storage capacity
• Four × 5.12kWh BP5000P battery modules
• Stackable integrated design with plug-and-play installation
• No additional battery interconnection cables required
• Expandable storage capacity from 5kWh to 120kWh (1–24 battery modules)
• Automatic single battery fault isolation function
• Operating temperature range: -20°C to 60°C
• 5-layer battery safety protection system:
  • Full coverage temperature detection
  • Intelligent BMS control with over-temperature, over-current, and over-voltage protection
  • Built-in physical short-circuit protection
  • Internal aerosol fire extinguisher
  • Decompression valve
• Visible energy tracking and remote upgrades via Hinen APP

Hinen Battery Accessory Kit

The included Hinen Battery Accessory Kit provides all required components for a secure, stable, and professional installation of the BP5000P battery system. Specifically designed for the IP54 BP5000P range, it ensures correct battery alignment, structural support, and a clean installation for both single and multi-battery configurations.

Accessory Kit Features:

• Designed specifically for Hinen BP5000P battery systems
• Provides secure and stable battery installation
• Supports correct battery positioning and spacing
• Professional finish for residential energy storage installations
• Compatible with scalable multi-battery configurations

Complete 20kWh Home Energy Storage Solution

The Hinen H3600 Hybrid Inverter with 4 × IP54 BP5000P Batteries and Accessory Kit delivers a complete, reliable, and future-ready energy storage solution for homeowners looking to maximise solar self-consumption, increase backup power availability, and achieve greater energy independence.

System Includes:

• 1 × Hinen H3600 Hybrid Inverter
• 4 × Hinen IP54 BP5000P 5kWh Low-Voltage Batteries
• 1 × Hinen Battery Accessory Kit
• Total Battery Capacity: 20.48kWh
• Expandable storage capability up to 120kWh
