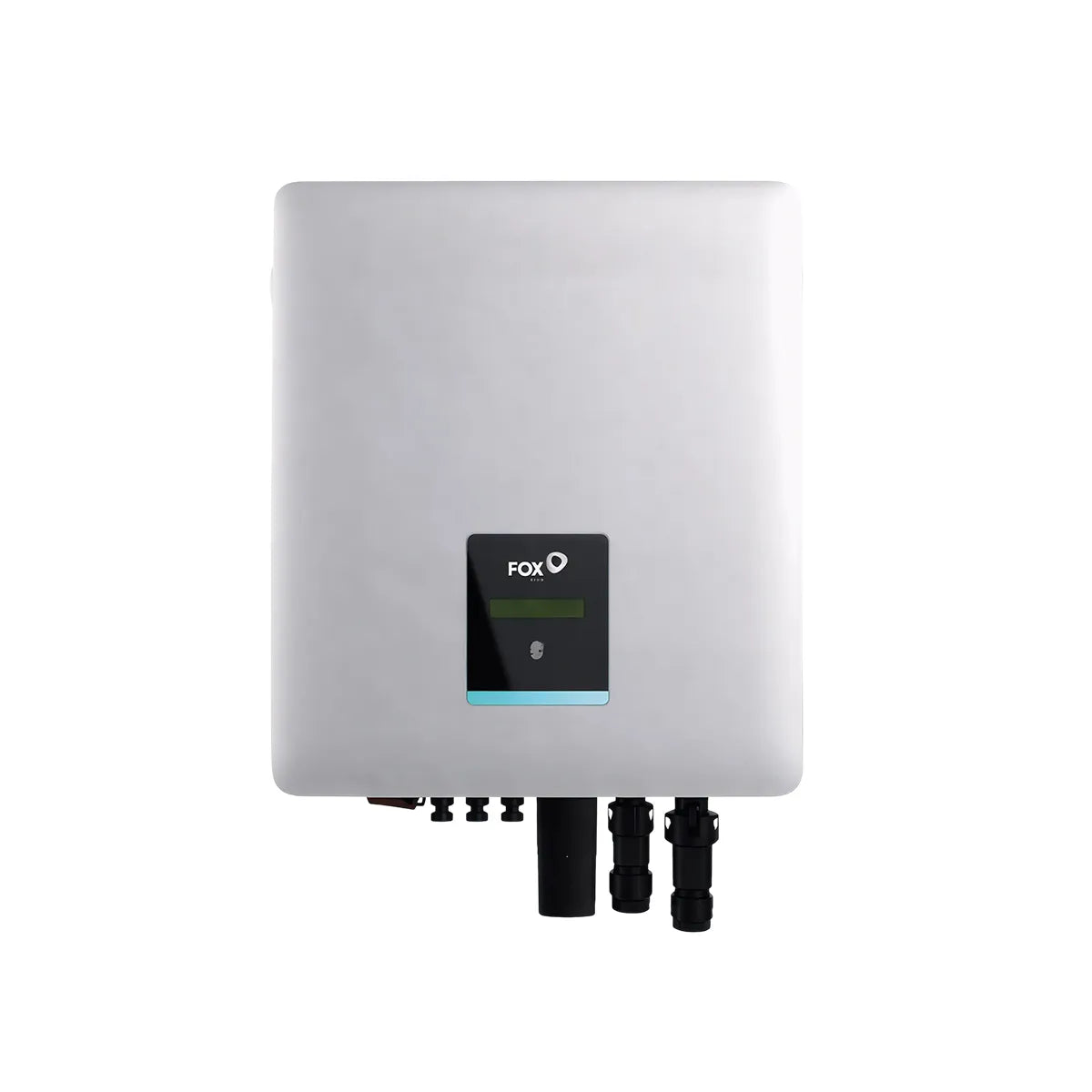

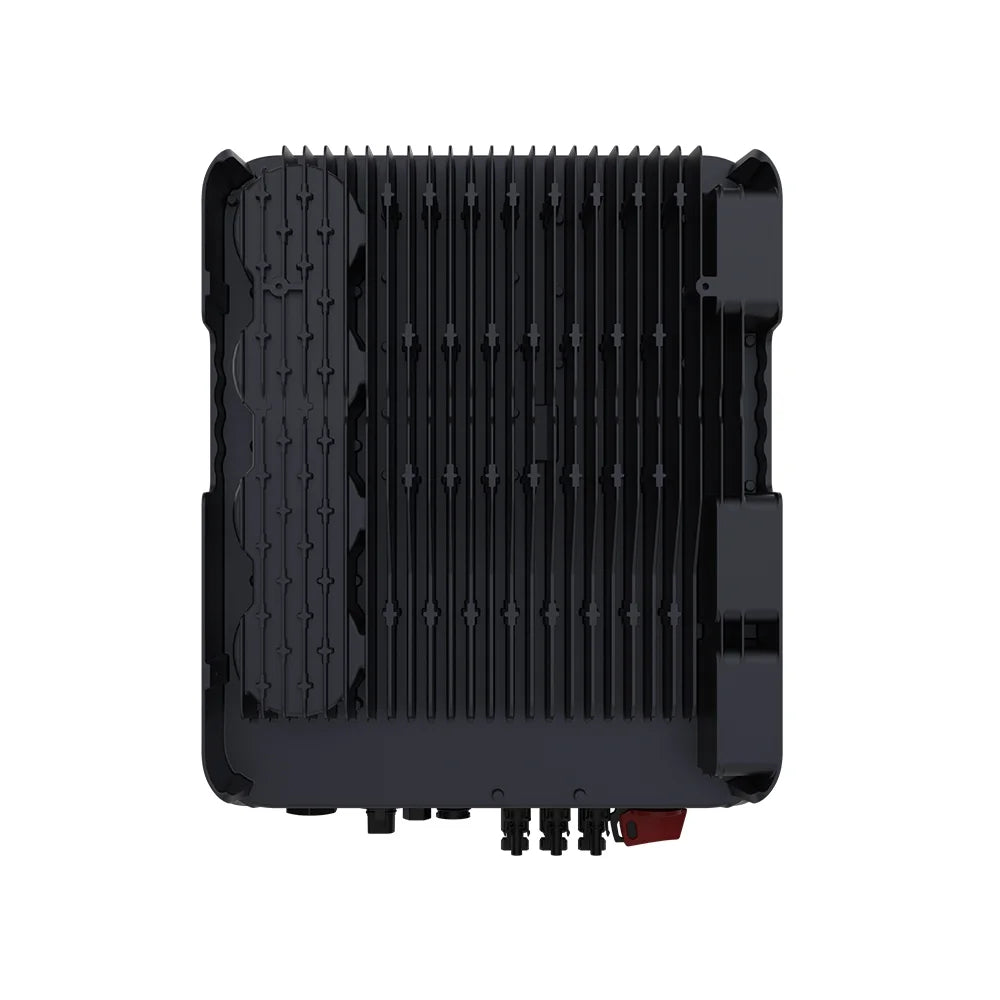

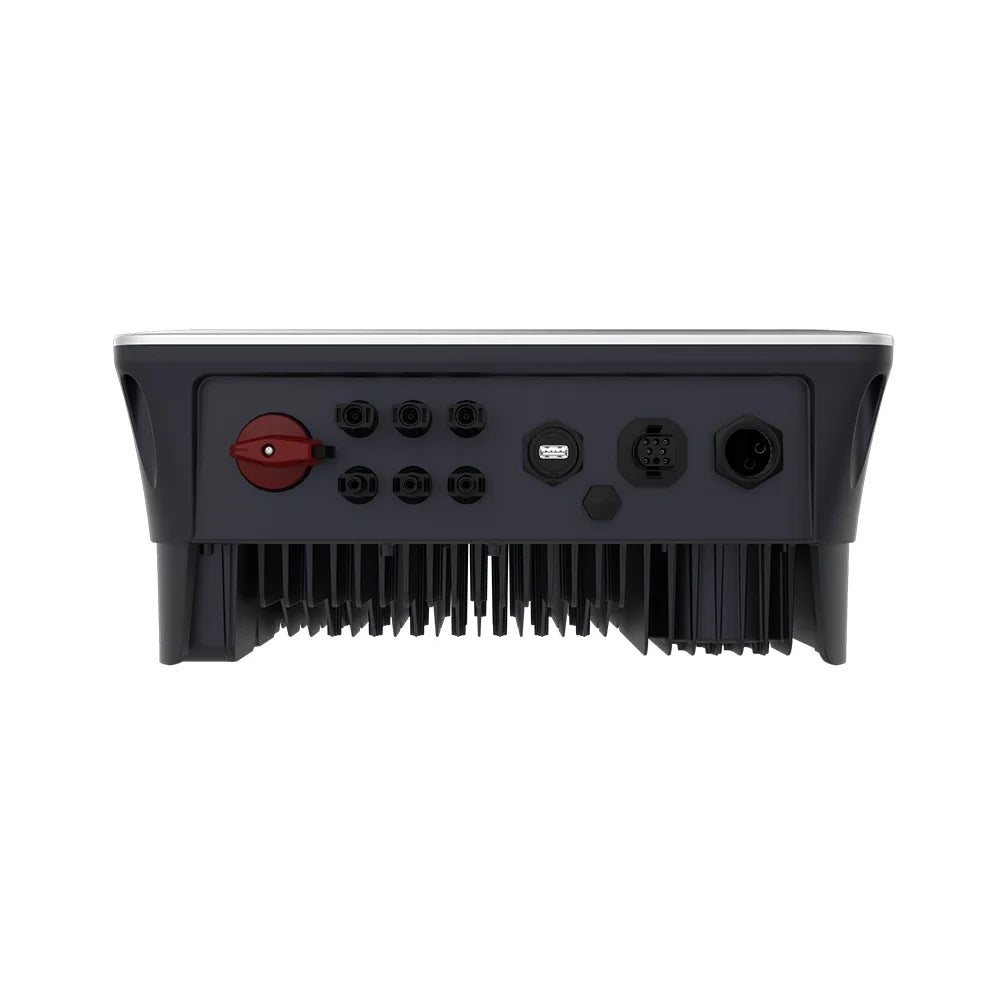

Fox Ess G Series 8kW 1ph String

Name: Fox Ess G Series 8kW 1ph String
Brand: Fox ESS
SKU: H3-12.0-E
Price: 603.20 GBP
Availability: InStock

Please sign-in to see prices and add to cart button

The Fox ESS G Series 8kW Single-Phase String Inverter is a high-performance inverter designed for residential solar PV systems. Featuring dual MPPT technology, high conversion efficiency and integrated WiFi monitoring, it maximises energy production while providing reliable, long-term operation. Its compact IP65-rated design makes it suitable for both indoor and outdoor installations, delivering an efficient and dependable solution for modern solar energy systems.

AC Attribute	Specification
Rated Output Power	8000W
Maximum Apparent Power	8000VA
Maximum Output Current	34.8A
Number of Phases	1
Rated Voltage	220 / 230 / 240V AC
Frequency	50 / 60Hz
Power Factor	Adjustable (0.8 leading to 0.8 lagging)
THDi	<3%

DC Attribute	Specification
Max PV Power	12.0kWp
Max Input Voltage	600V
MPPT Voltage Range	80–550V
Start-up Voltage	100V
Number of MPPTs	2
Strings per MPPT	1 / 1
Max Input Current per MPPT	14A / 14A
Max Short Circuit Current per MPPT	18A / 18A

In stock

Quantity:

Key features

8kW single-phase string inverter for residential solar PV systems.
Dual MPPT trackers maximise energy generation across multiple roof orientations.
Up to 97.8% efficiency for high energy yield and performance.
Integrated WiFi monitoring for remote system management via the Fox ESS Cloud platform.
IP65-rated enclosure with natural cooling for reliable indoor or outdoor installation.

Weight

19kg

Dimensions

380 x 440 x 167mm

Efficiency

97.8%

Warranty

10 Years
