Solis S5 20kW Three Phase Dual MPPT String Inverter - DC
- Max.

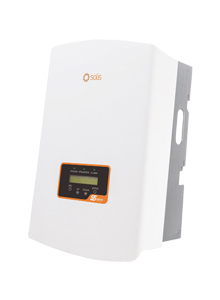

Solis S5 20kW Three Phase String Inverter
Solis S5 20kW Three Phase String Inverter
Regular price
£1,509.91
Unit price
per
Product Specs: Default Title
Supplier Part No:
SOL-S5-GR3P-20K-DC
Weight:
23.2 kg
Rated Power:
20,000 W
Min PPT Voltage:
180 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
180 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,100 V
Max DC Power:
30,000 W
Max AC Power (5 Minutes):
22,000 W
Surge AC Power (1 Second):
22,000 W
Max DC Current:
64 A
Max DC Inputs:
4
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
8
Euro Efficiency:
98.10%
Transformer:
None
MPPT Quantity :
2
Has Integrated DC Switch:
Yes
Warranty:
5 years
Description
Solis S5 20kW Three Phase Dual MPPT String Inverter - DC
- Max. efficiency of 98.7%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 4
- Maximum AC output power of 22kW
- Max PV DC Power of 30kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty
Register on SolisCloud, to support remote upgrade and control.
Specifications
Supplier Part No:
SOL-S5-GR3P-20K-DC
Weight:
23.2 kg
Rated Power:
20,000 W
Min PPT Voltage:
180 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
180 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,100 V
Max DC Power:
30,000 W
Max AC Power (5 Minutes):
22,000 W
Surge AC Power (1 Second):
22,000 W
Max DC Current:
64 A
Max DC Inputs:
4
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
8
Euro Efficiency:
98.10%
Transformer:
None
MPPT Quantity :
2
Has Integrated DC Switch:
Yes
Warranty:
5 years
