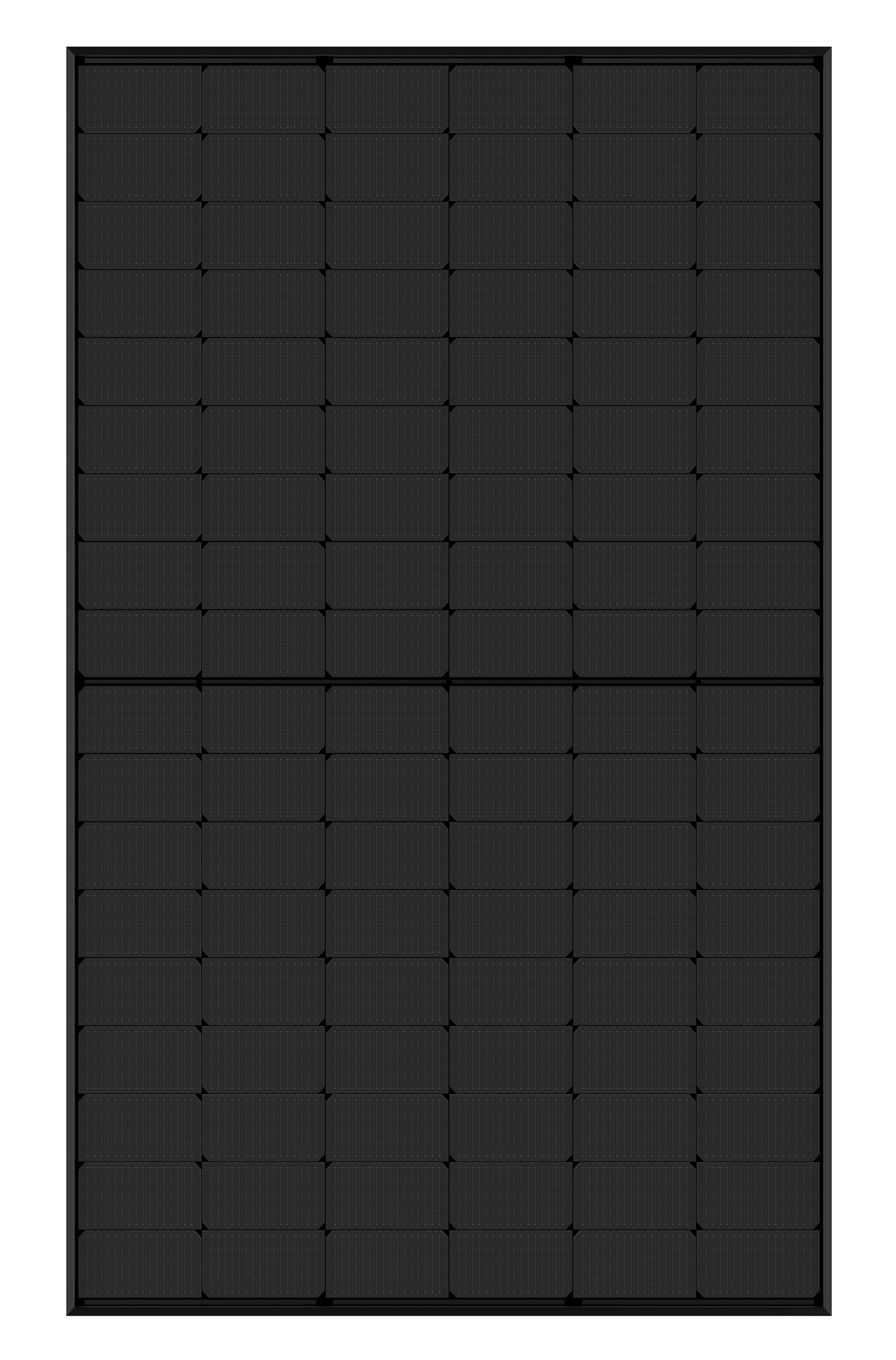

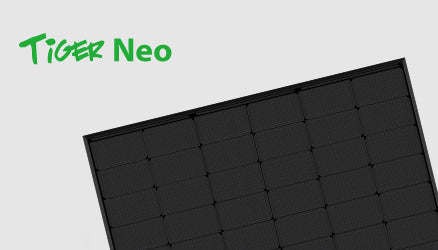

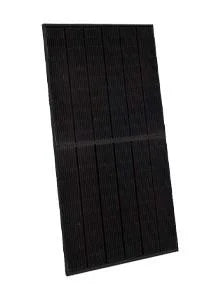

435Wp Jinko Tiger Neo - High Performance All Black N-Type

435Wp Jinko Tiger Neo - High Performance All Black N-Type

Regular price £80.00
Sale In Stock: Call to order
Better light trapping and current collection to improve module power output and reliability.
Show More
View full details

Product Downloads: 435W / Black

Datasheet Download
MCS Certificate Download
Jinko TUV Installation Manual Download
Certificate of Conformity LV Directive Download
UKCA Single Glass - 1000V Download
ISO 9001 Download
Tiger NEO IEC for all modules v4 Download
JInkoSolar Global Limited Warranty Download
LVD-Tiger Neo all series Vers 2.0 - May - 22 Download

Product Specs: 435W / Black

Product Warranty 25 Years
Linear Generation Warranty 30 Years
Backsheet Foil - Black
Panel Type Glass / Foil
Cells N-Type 108 half-cell
Glass with anti-reflection coating Yes
Connector Type MC4
Dimensions 1722 x 1134 x 30mm
Weight 22 kgs

Description

Better light trapping and current collection to improve module power output and reliability.

Reduced Hot Spot Loss

Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.

Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Enhanced Mechanical Load

High salt mist and ammonia resistance.

Durability Against Extreme Environmental Conditions

Multi Busbar Technology

25-Year Product Warranty

30-Year Linear Power Warranty

0.55% Annual Degradation Over 25 years LINEAR PERFORMANCE WARRANTY

MCS Certification Number: BABT8801-203-435W


Downloads

Datasheet Download
MCS Certificate Download
Jinko TUV Installation Manual Download
Certificate of Conformity LV Directive Download
UKCA Single Glass - 1000V Download
ISO 9001 Download
Tiger NEO IEC for all modules v4 Download
JInkoSolar Global Limited Warranty Download
LVD-Tiger Neo all series Vers 2.0 - May - 22 Download

Specifications

Product Warranty 25 Years
Linear Generation Warranty 30 Years
Backsheet Foil - Black
Panel Type Glass / Foil
Cells N-Type 108 half-cell
Glass with anti-reflection coating Yes
Connector Type MC4
Dimensions 1722 x 1134 x 30mm
Weight 22 kgs
