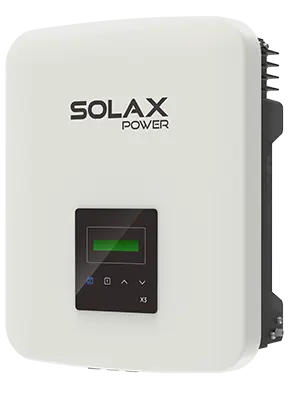

Solax X3 Mic 6kW Three Phase String Inverter

Solax X3 Mic 6kW Three Phase String Inverter

£800.93
Sale In Stock: Call to order

WhyX3 MIC G2

Experience the power of the X3-MIC G2 inverter, combining high efficiency, safety, and intelligent features.

Show More
Datasheet
View full details

Product Downloads: Default Title

Datasheet Download
Quick Installation Guide Download
User Manual Download

Product Specs: Default Title

Max. PV input voltage 1000V
Max. PV input current 16A/16A
No. of MPP trackers/Strings per MPP tracker 2(1/1)
Operating ambient temperature range -30~+60°C
Dimensions (W*H*D) 342*434*144.5mm
Net weight 15.5kg

Description

WhyX3 MIC G2

Experience the power of the X3-MIC G2 inverter, combining high efficiency, safety, and intelligent features. With a maximum efficiency of 98.3% and 200% oversizing capability, maximize energy generation with ease. Enjoy smart functionalities like built-in export power control, remote setting and upgrading. Monitor your system effortlessly with multiple monitoring methods. The X3-MIC G2 is designed for economic performance and supports high-power solar panels, offering a compact solution that delivers exceptional power density. Unleash the true potential of your local energy system with the X3-MIC G2.

High Efficiency

  • Maximum efficiency up to 98.3%

  • Low start-up voltage, ultrawide MPPT voltage range

  • 200% oversizing, 110% overloading output (Except 15kW model)

  • Global MPP scan for higher yield efficiency integrated

Safety

  • IP66 protection

  • SPD protection on both AC & DC integrated

  • AFCI protection (Optional)

Smart

  • Export power control integrated

  • Remote setting and upgrading

  • 24h monitoring and maintenance (Optional)

  • Intelligent load management - heat pump (Adapter Box required)

  • Multiple monitoring methods supported (Optional: Wi-Fi/LAN/4G)

Economic

  • Ultrahigh power density

  • Max. MPP current per string is 16A, supporting high-power solar panels

Downloads

Datasheet Download
Quick Installation Guide Download
User Manual Download

Specifications

Max. PV input voltage 1000V
Max. PV input current 16A/16A
No. of MPP trackers/Strings per MPP tracker 2(1/1)
Operating ambient temperature range -30~+60°C
Dimensions (W*H*D) 342*434*144.5mm
Net weight 15.5kg
