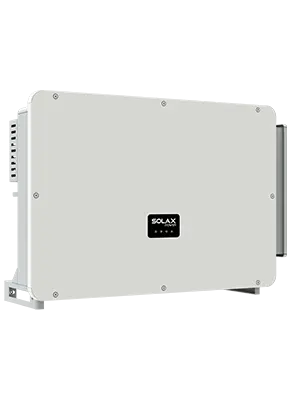

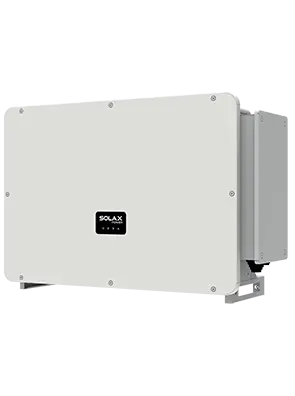

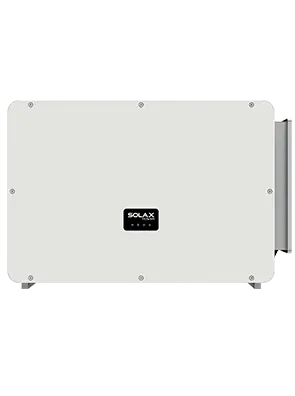

SolaX X3 Forth 136kW Three Phase String Inverter

SolaX X3 Forth 136kW Three Phase String Inverter

Experience the remarkable power of our high-efficiency solar inverter, reaching an impressive 99% efficiency. Maximize your energy generation with multiple features like 12 MPPTs, 150% PV oversizing input, and 110% overloading output.


Rest assured with reliable protection at every level, including AFCI protection, AC terminal temperature detection, SPD protection, and IP66 protection, ensuring your safety. Embrace intelligent capabilities like built-in export power control, remote maintenance, and 24-hour operation monitoring, offering seamless convenience. Discover the brilliance of smart solar panel I-V Curve Diagnosis and night-time reactive power compensation, optimizing your energy production. Plus, enjoy the benefits of a lightweight, compact design equipped with advanced heat dissipation technology, which makes the system more than 5% lighter and smaller. Unleash the true potential of our local energy solution, delivering efficient, safe, and convenient power generation for your needs.

Safety & Reliability

  • IP66 protection

  • AFCI protection (Optional)

  • AC terminal temperature detection

  • Both AC & DC SPDs (Type II) inside; Type I+II SPD (Optional)

More Energy Harvest

  • Max. efficiency up to 99

  • 180~1000Vdc MPPT voltage range

  • 12 MPPTs, 2 strings/MPP tracker

  • 150% PV oversizing input, 110% overloading output

  • Max. 32A MPPT current

Intelligence for Easy Maintenance and Economy

  • Built-in export power control

  • Remote setting and upgrading

  • 24-hour operation monitoring

  • Smart I-V Curve Diagnosis supported

  • Night-time reactive power compensation

  • Aluminum AC cable connection available

  • Power line communication (PLC) (Optional)

  • Fuse-free design with smart string current monitoring

  • Smart air cooling for extended fan lifetime

To view pricing:
Data Sheets
Specifications
View full details

Product Downloads: Default Title

Datasheet Download
User Manual Download
Quick Install Guide Download

Product Specs: Default Title
