Solis S5 6kW Three Phase Dual MPPT String Inverter - DC
- Max.

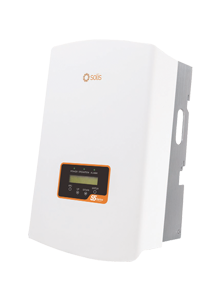

Solis S5 6kW Three Phase String Inverter
Solis S5 6kW Three Phase String Inverter
Regular price
£830.57
Unit price
per
Product Specs: Default Title
G100 Solis-3P(3-20)K-4G&S5-GR3P(3-20)K.pdf
SOL-S5-GR3P-6K-DC
Weight:
19.48 kg
Rated Power:
6,000 W
Min PPT Voltage:
180 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
180 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,100 V
Max DC Power:
9,000 W
Max AC Power (5 Minutes):
6,600 W
Surge AC Power (1 Second):
6,600 W
Max DC Current:
32 A
Max DC Inputs:
2
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
97.70%
Transformer:
None
MPPT Quantity :
2
Has Integrated DC Switch:
Yes
Warranty:
5 years
Description
Solis S5 6kW Three Phase Dual MPPT String Inverter - DC
- Max. efficiency of 98.3%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16A PV string input x 2
- Maximum AC output power of 6.6kW
- Max PV DC Power of 9kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty
Register on SolisCloud, to support remote upgrade and control.
Specifications
G100 Solis-3P(3-20)K-4G&S5-GR3P(3-20)K.pdf
SOL-S5-GR3P-6K-DC
Weight:
19.48 kg
Rated Power:
6,000 W
Min PPT Voltage:
180 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
180 V
DC Shutdown Voltage:
160 V
Max Input Voltage:
1,100 V
Max DC Power:
9,000 W
Max AC Power (5 Minutes):
6,600 W
Surge AC Power (1 Second):
6,600 W
Max DC Current:
32 A
Max DC Inputs:
2
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
4
Euro Efficiency:
97.70%
Transformer:
None
MPPT Quantity :
2
Has Integrated DC Switch:
Yes
Warranty:
5 years
