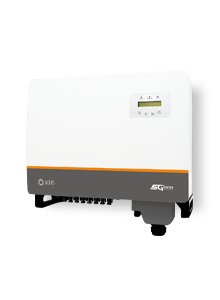

Solis S5 25kW Three Phase Triple MPPT String Inverter - DC
- Max.
Solis S5 25kW Three Phase String Inverter
Solis S5 25kW Three Phase String Inverter
Regular price
£1,761.74
Unit price
per
Product Downloads: Default Title
Datasheet
Download
Product Specs: Default Title
Supplier Part No:
SOL-S5-GC25K-DC
Weight:
37 kg
Rated Power:
25,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
200 V
DC Shutdown Voltage:
180 V
Max Input Voltage:
1,100 V
Max DC Power:
37,500 W
Max AC Power (5 Minutes):
25,000 W
Surge AC Power (1 Second):
27,500 W
Max DC Current:
96 A
Max DC Inputs:
6
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
12
Euro Efficiency:
98.10%
Transformer:
None
MPPT Quantity :
3
Has Integrated DC Switch:
Yes
Warranty:
5 years
Description
Solis S5 25kW Three Phase Triple MPPT String Inverter - DC
- Max. efficiency of 98.5%
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range - Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 32A input per MPPT, 16A input for each PV string
- Maximum AC output power of 27.5kW
- 3 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 Rated
- DC reverse-polarity protection
- 5-year standard warranty, extendable to 10 or 20-years.
Register on SolisCloud, to support remote upgrade and control.
Please note that this inverter does not include a data logger, CT, meter or export power manager. The meter "SOL-METER-3PH-CT3" is needed for export power control of one inverter, for more than one inverter use the EPM3-5G-PLUS. The meter requires a data logging stick but EPM3-5G-PLUS has a built in data logger. These items are sold separately.
Downloads
Datasheet
Download
Specifications
Supplier Part No:
SOL-S5-GC25K-DC
Weight:
37 kg
Rated Power:
25,000 W
Min PPT Voltage:
200 V
Max PPT Voltage:
1,000 V
DC Startup Voltage:
200 V
DC Shutdown Voltage:
180 V
Max Input Voltage:
1,100 V
Max DC Power:
37,500 W
Max AC Power (5 Minutes):
25,000 W
Surge AC Power (1 Second):
27,500 W
Max DC Current:
96 A
Max DC Inputs:
6
Has DC Fuses:
0
Connector:
MC4
Included Connectors:
12
Euro Efficiency:
98.10%
Transformer:
None
MPPT Quantity :
3
Has Integrated DC Switch:
Yes
Warranty:
5 years
