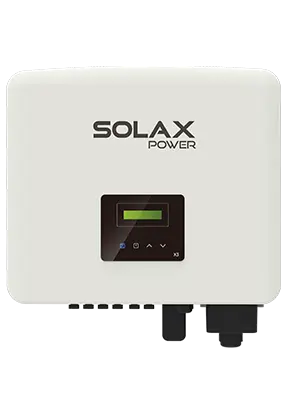

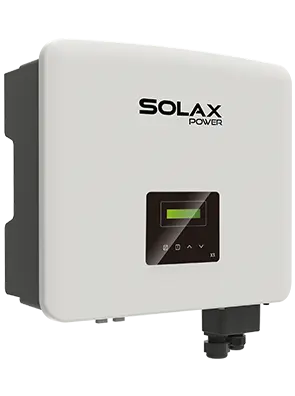

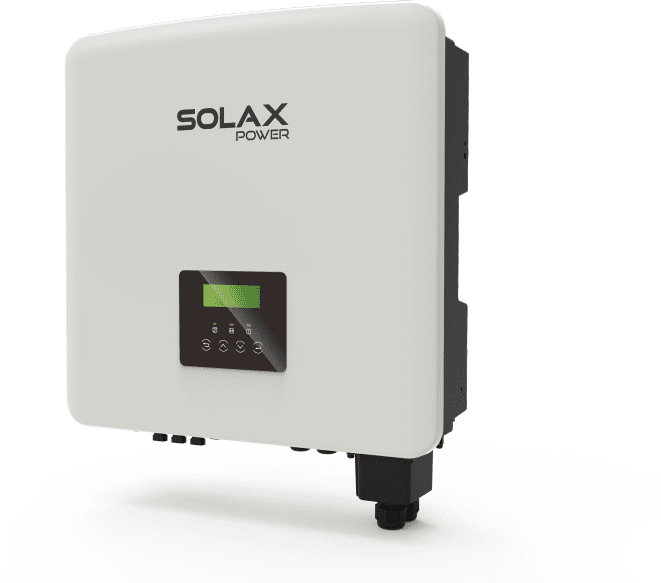

SolaX X3 Pro 20kW Three Phase String Inverter

With built-in export power control and intelligent load management for heat pumps, optimize your energy usage effortlessly. Take advantage of its compatibility with high-power solar panels, maximizing energy generation. Choose optional 24-hour monitoring and maintenance for continuous performance. Unleash the potential of your solar system with the X3-PRO G2.

High-efficiency

• Max. efficiency is up to 98.5%
• Low startup voltage, ultrawide MPPT voltage range
• 150% DC oversizing, 110% AC overloading output
• Global MPP scan for higher yield efficiency integrated

Smart

• Export power control integrated
• Intelligent load management - heat pump (Adapter Box required)
• 24h monitoring and maintenance (Optional)
• Multiple monitoring methods supported, Optional: WiFi/LAN/4G

Safe

• SPD type II protection on both AC&DC
• ARC protection (Optional)
• IP66 protection

Economic

• High power solar panels supported
• Max. 32A DC input current per MPP tracker
• 2 MPPTs, 2 strings per MPPT
• Master/Slave parallel function supported
