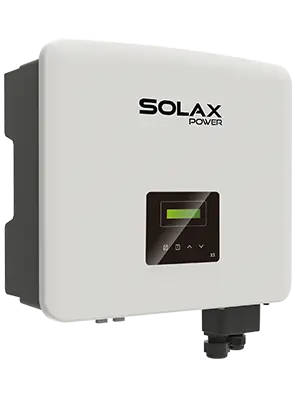

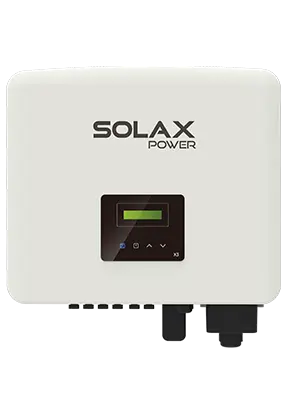

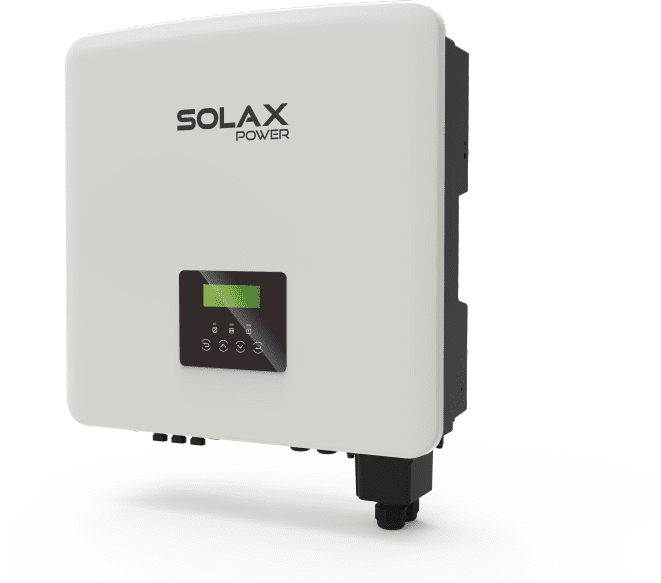

SolaX X3 Pro 12kW Three Phase String Inverter

SolaX X3 Pro 12kW Three Phase String Inverter

£1,098.38
Sale In Stock: Call to order

Show More

Datasheet
View full details

Product Downloads: Default Title

Datasheet Download
User Manual Download
Installation Guide Download

Product Specs: Default Title

Max. PV input voltage 1100V
Max. PV input current 32A/32A
No. of MPP trackers/Strings per MPP tracker 2/2
Operating ambient temperature range -30~+60°C
Dimensions (W*H*D) 482*417*186mm
Net weight 24.5kg

Description

Experience the power of the X3-PRO G2 solar inverter, delivering high efficiency, safety, and smart features. With built-in export power control and intelligent load management for heat pumps, optimize your energy usage effortlessly. Take advantage of its compatibility with high-power solar panels, maximizing energy generation. Choose optional 24-hour monitoring and maintenance for continuous performance. Unleash the potential of your solar system with the X3-PRO G2.

High-efficiency

  • Max. efficiency is up to 98.5%

  • Low startup voltage, ultrawide MPPT voltage range

  • 150% DC oversizing, 110% AC overloading output

  • Global MPP scan for higher yield efficiency integrated

Safe

  • SPD type II protection on both AC&DC

  • ARC protection (Optional)

  • IP66 protection

Smart

  • Export power control integrated

  • Intelligent load management - heat pump (Adapter Box required)

  • 24h monitoring and maintenance (Optional)

  • Multiple monitoring methods supported, Optional: WiFi/LAN/4G

Economic

  • High power solar panels supported

  • Max. 32A DC input current per MPP tracker

  • Up to 3 MPPTs, 2 strings per MPPT

  • Master/Slave parallel function supported


Downloads

Datasheet Download
User Manual Download
Installation Guide Download

Specifications

Max. PV input voltage 1100V
Max. PV input current 32A/32A
No. of MPP trackers/Strings per MPP tracker 2/2
Operating ambient temperature range -30~+60°C
Dimensions (W*H*D) 482*417*186mm
Net weight 24.5kg
