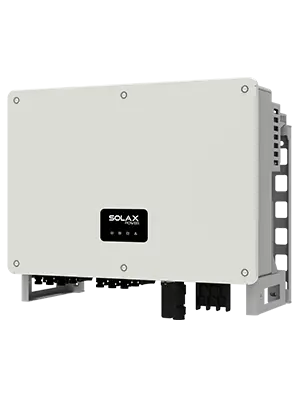

SolaX X3 Mega 40kW Three phase String Inverter

Rest assured with IP66, Arc-fault circuit interrupter, and SPD protection, ensuring your system's safety and security. Unlock the full potential with intelligent features like built-in export power control, remote maintenance, and smart I-V curve diagnostics. Moreover, the X3 MEGA G2 utilizes advanced heat dissipation technology, not only empowering it with immense power but also making it remarkably lighter and more compact compared to inverters of similar capacity. Elevate your energy system to new heights with the X3 MEGA G2, guaranteeing unparalleled performance and efficiency.

More Energy Harvest

• Max. efficiency 98.4%
• 180~1000Vdc MPPT voltage range
• 4 MPPTs, 2 strings per MPP tracker
• 150% PV oversizing input, 110% overloading output
• Max. 32A MPPT current

Safety & Reliability

• IP66 protection
• AFCI protection (Optional)
• Both AC&DC SPDs (Type II) inside, Type I+II SPD (Optional)

Smart Maintenance and Cost Efficiency

• Built-in export power control
• Remote setting and upgrading
• Smart I-V Curve Diagnosis supported
• Aluminum AC cable connection available
• Fuse-free design with smart string current monitoring
• Night-time Reactive Power Compensation
• 24-hour operation monitoring (Optional)
• Smart air cooling for extended fan lifetime
• Advanced heat dissipation for over 10% lighter, smaller system

Inverter Delivery

Inverters will be sent using DPD as the main courier on a next day service for orders placed before 1PM. Orders containing multiple inverters, 6+, or inverters weighing over 30kg will be sent with our trusted pallet network on a 48hr service as standard. If you require any additional information please reach out and we will offer a bespoke shipping service where applicable.Please check Tail-lift at checkout if required at delivery address, if this is not checked our couriers will be expecting a forklift on site to unload goods.

Inverter Returns

If for whatever reason you would like to arrange a return of your order this must be done at your own cost. The return period is 30 days from date of delivery. Damaged goods will be replaced or refunded, given sufficient evidence (images) has been provided to us within half an hour of delivery. Once they have been returned to our HQ at Power Warehouse, 3 Houghton St, Oldbury, Birmingham, B69 2BB we can go about arranging a replacement or refund. Please get in touch prior to shipping any goods back to us.

Bespoke Delivery

Please note if your order contains multiple components, Panels, Inverters, Batteries, Mounting etc get in touch to see how we may be able to save money on your delivery by optimising delivery options.
