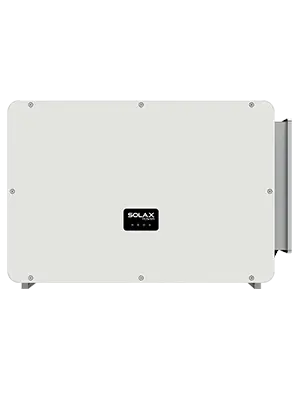

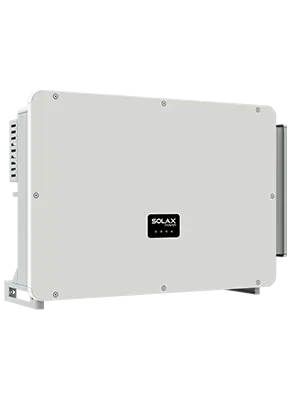

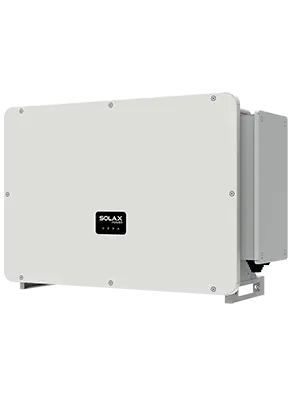

SolaX X3 Forth 80kW Three Phase String Inverter

Maximize your energy generation with multiple features like 9 MPPTs, 150% PV oversizing input, and 110% overloading output.

Rest assured with reliable protection at every level, including AFCI protection, AC terminal temperature detection, SPD protection, and IP66 protection, ensuring your safety. Embrace intelligent capabilities like built-in export power control, remote maintenance, and 24-hour operation monitoring, offering seamless convenience. Discover the brilliance of smart solar panel I-V Curve Diagnosis and night-time reactive power compensation, optimizing your energy production. Plus, enjoy the benefits of a lightweight, compact design equipped with advanced heat dissipation technology, which makes the system more than 5% lighter and smaller. Unleash the true potential of our local energy solution, delivering efficient, safe, and convenient power generation for your needs.

Safety & Reliability

• IP66 protection
• AFCI protection (Optional)
• AC terminal temperature detection
• Both AC & DC SPDs (Type II) inside; Type I+II SPD (Optional)

More Energy Harvest

• Max. efficiency up to 98.6%
• 180~1000Vdc MPPT voltage range
• 9 MPPTs, 2 strings/MPP tracker
• 150% PV oversizing input, 110% overloading output
• Max. 32A MPPT current

Intelligence for Easy Maintenance and Economy

• Built-in export power control
• Remote setting and upgrading
• 24-hour operation monitoring
• Smart I-V Curve Diagnosis supported
• Night-time reactive power compensation
• Aluminum AC cable connection available
• Power line communication (PLC) (Optional)
• Fuse-free design with smart string current monitoring
• Smart air cooling for extended fan lifetime
