Sigen Energy Controller 25kW Three Phase Inverter

Sigen Energy Controller 25kW Three Phase Inverter

£3,211.00
Sale In Stock: Call to order

Sigen Energy Controller 25.

Show More
Datasheet
View full details

Product Downloads: Default Title

Datasheet Download
Warranty Document Download

Product Specs: Default Title

Max PV Power 40,000W
MPPT Voltage Range 160~1000V
Number of MPP Trackers 4
Strings per MPPT 1
Max Efficiency 98.3%
Weight 36kg
IP Rating IP66

Description

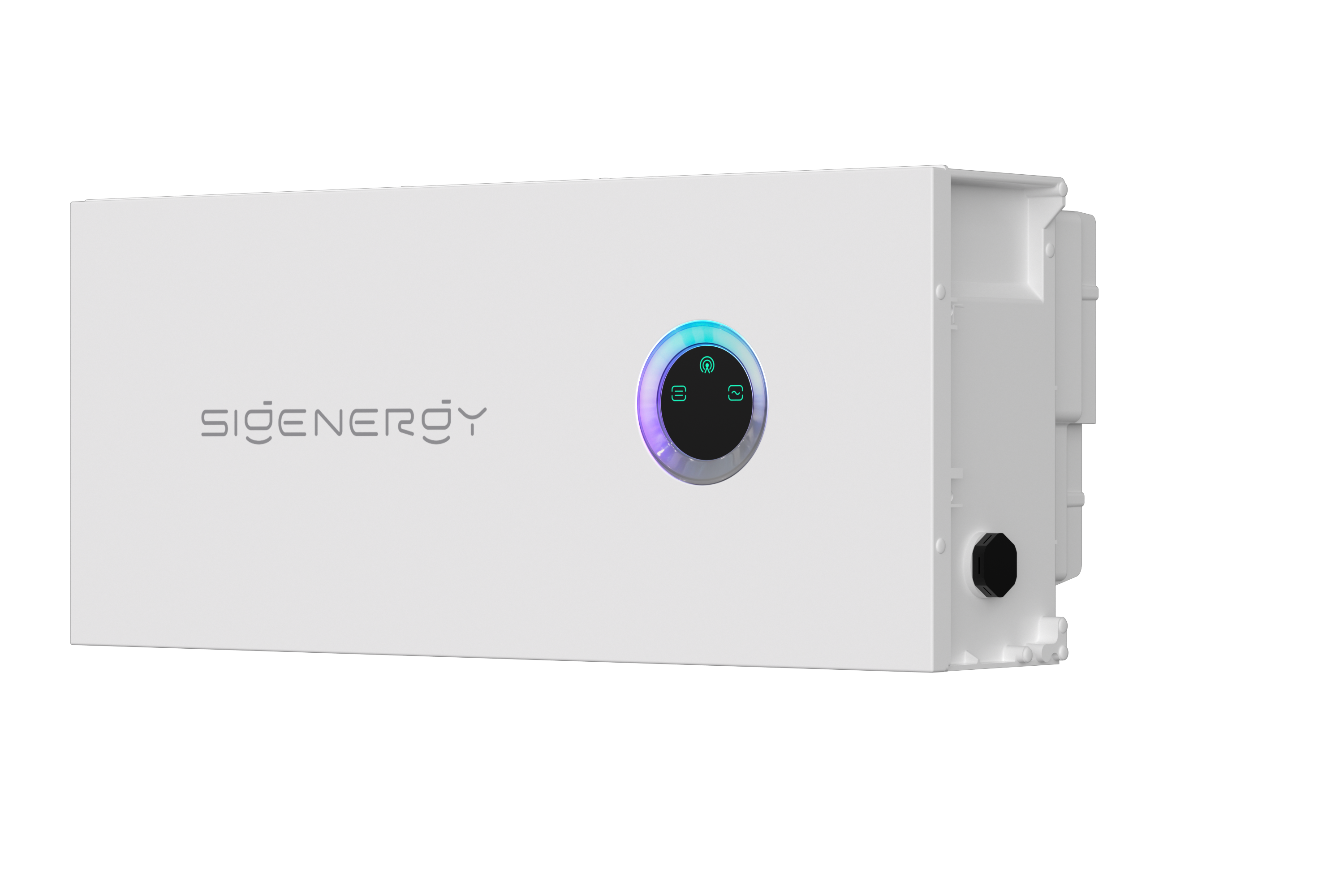

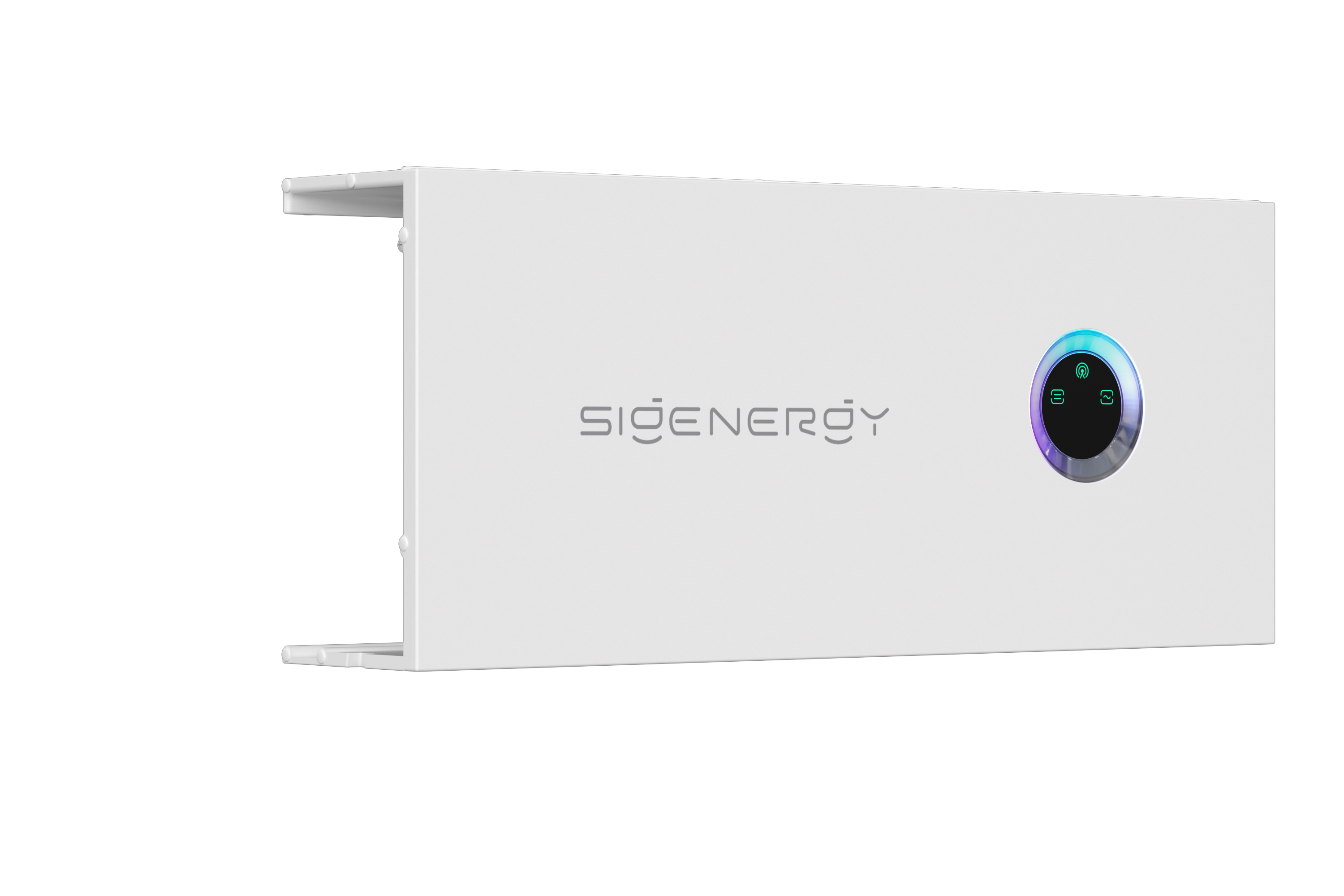

Sigen Energy Controller 25.0 kW Three Phase Hybrid

The Sigen Energy Controller EC 25.0 TP, a robust 25.0kW, 3Ph, Hybrid Inverter, stands as a cornerstone in seamlessly integrating and optimizing the SigenStor AI-enhanced 5-in-1 Energy Storage System. Tailored for efficiency, savings, flexibility, and resilience, this controller ensures precise control and energy independence across various application scenarios.

Battery Connection:

- Compatible with SigenStor BAT 5.0kWh and 8.0kWh
- 1 to 6 batteries per inverter (controller) - Max 48kWh per inverter
- Mix and match batteries
- Up to 10 inverters per system
- Maximum Battery Storage per System: 480kW

The SigenStor energy controller is an integral part of the SigenStor 5-in-1 Energy Storage System, seamlessly integrating PV inverter, Battery Power Conversion System (PCS), EV DC Charger for electric vehicles, Battery Pack, and Energy Management System (EMS). Versatility is key, with application scenarios including PV+ ESS, Battery-ready, Retrofit, and Backup.

Distinguished by its stylish front eagle eye and side ambient lighting, the SigenStor ESS complements any environment, providing energy independence with maximum efficiency.

Key Features:

- Four MPP trackers
- Integrated EMS for precise control
- Multi-source black start capability
- DC ground-fault protection
- Maximum short-circuit Current per MPPT: 20A
- DC/AC ratio up to 1.6
- IP66 protection for durability
- Smart Air Cooling for efficient temperature management
- Communication options: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
- Impressive 10-year warranty for peace of mind
- G99 and G100 certified
- The SigenStor EC requires at least one SigenStor BAT5 or SigenStor BAT8 for operation
- Note: The SigenStor ESS components are interdependent, except for the optional EV DC charger.

Elevate your energy management with the Sigen Energy Controller EC 25.0 TP, ensuring a seamless integration with advanced features for enhanced control and reliability.

Downloads

Datasheet Download
Warranty Document Download

Specifications

Max PV Power 40,000W
MPPT Voltage Range 160~1000V
Number of MPP Trackers 4
Strings per MPPT 1
Max Efficiency 98.3%
Weight 36kg
IP Rating IP66
