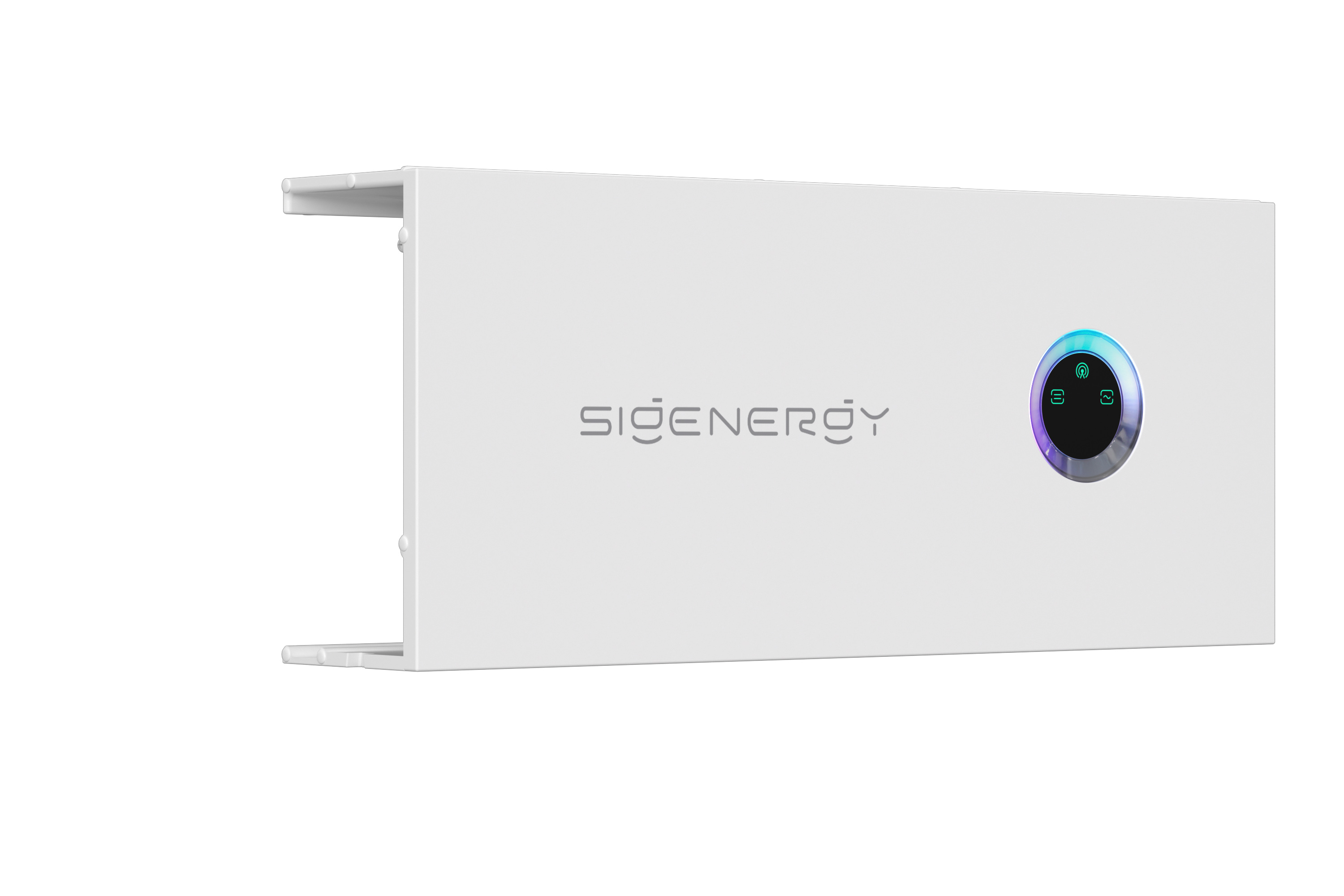

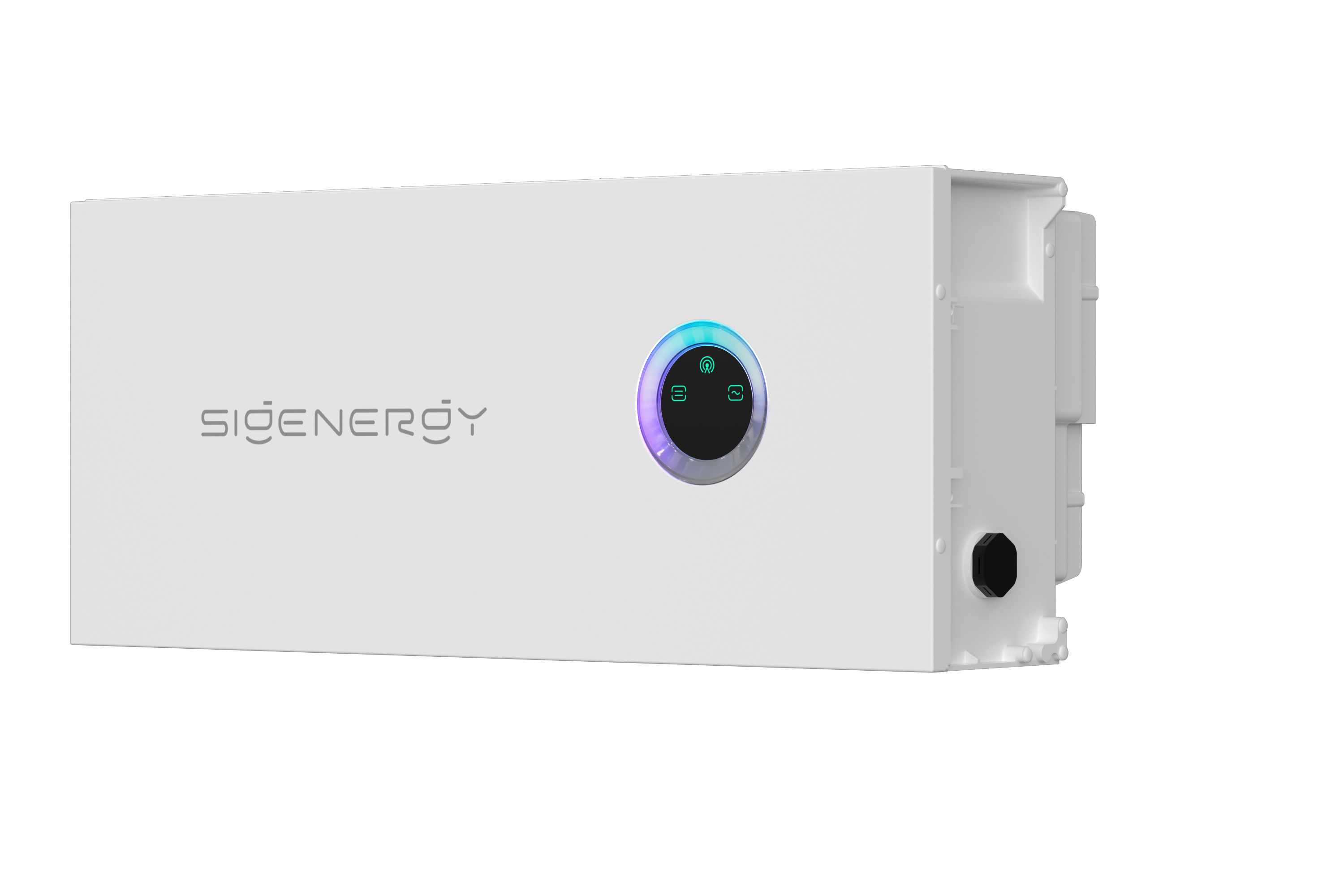

Sigen Energy Controller 10kW Three Phase Inverter

Sigen Energy Controller 10kW Three Phase Inverter

Regular price £1,857.98
Sale In Stock: Call to order

Sigen Energy Controller 10.

Show More
View full details

Product Downloads: Default Title

Datasheet Download
Warranty Document Download

Product Specs: Default Title

Max PV Power 16,000W
MPPT Voltage Range 160~1000V
Number of MPP Trackers 3
Strings per MPPT 1
Max Efficiency 98.3%
Weight 36kg
IP Rating IP66

Description

Sigen Energy Controller 10.0 kW Three Phase Hybrid

The Sigen Energy Controller EC 10.0 TP, a robust 10.0kW, 3Ph, Hybrid Inverter, plays a pivotal role in seamlessly integrating and optimizing the SigenStor AI-enhanced 5-in-1 Energy Storage System. Tailored for efficiency, savings, flexibility, and resilience, this controller ensures precise control and energy independence across various application scenarios.

Battery Connection:

Compatible with SigenStor BAT 5.0kWh and 8.0kWh
1 to 6 batteries per inverter (controller) - Max 48kWh per inverter
Mix and match batteries
Up to 10 inverters per system
Maximum Battery Storage per System: 480kW

The SigenStor energy controller is an integral part of the SigenStor 5-in-1 Energy Storage System, harmoniously integrating PV inverter, Battery Power Conversion System (PCS), EV DC Charger for electric vehicles, Battery Pack, and Energy Management System (EMS). Versatility is key, with application scenarios including PV+ ESS, Battery-ready, Retrofit, and Backup.

Distinguished by its stylish front eagle eye and side ambient lighting, the SigenStor ESS complements any environment, providing energy independence with maximum efficiency.

Key Features:

Three MPP trackers
Integrated EMS for precise control
Multi-source black start capability
DC ground-fault protection
Maximum short-circuit Current per MPPT: 20A
DC/AC ratio up to 1.6
IP66 protection for durability
Smart Air Cooling for efficient temperature management
Communication options: WLAN, Ethernet, RS485, Sigen CommMod (4G/3G/2G)
Impressive 10-year warranty for peace of mind
G98 and G100 certified
The SigenStor EC requires at least one SigenStor BAT5 or SigenStor BAT8 for operation
Note: The SigenStor ESS components are interdependent, except for the optional EV DC charger.
Elevate your energy management with the Sigen Energy Controller EC 10.0 TP, ensuring a seamless integration with advanced features for enhanced control and reliability.

Downloads

Datasheet Download
Warranty Document Download

Specifications

Max PV Power 16,000W
MPPT Voltage Range 160~1000V
Number of MPP Trackers 3
Strings per MPPT 1
Max Efficiency 98.3%
Weight 36kg
IP Rating IP66
