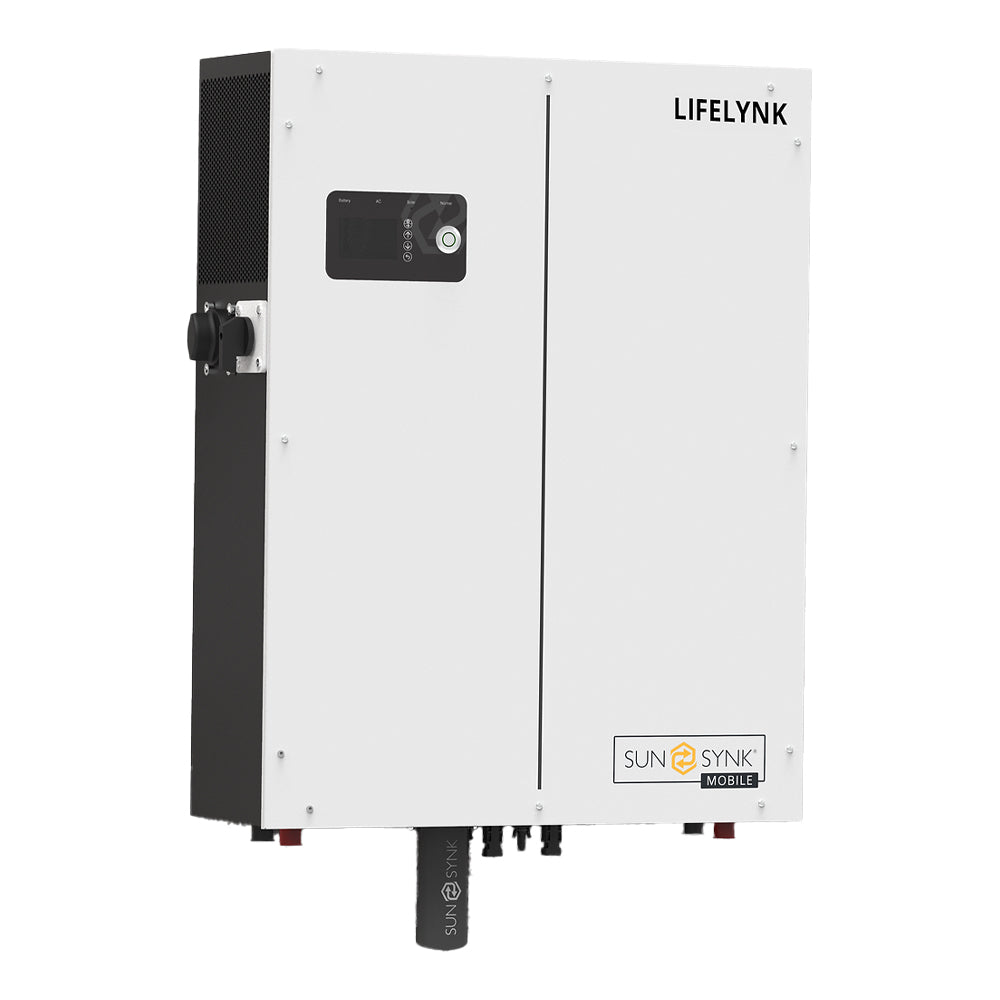

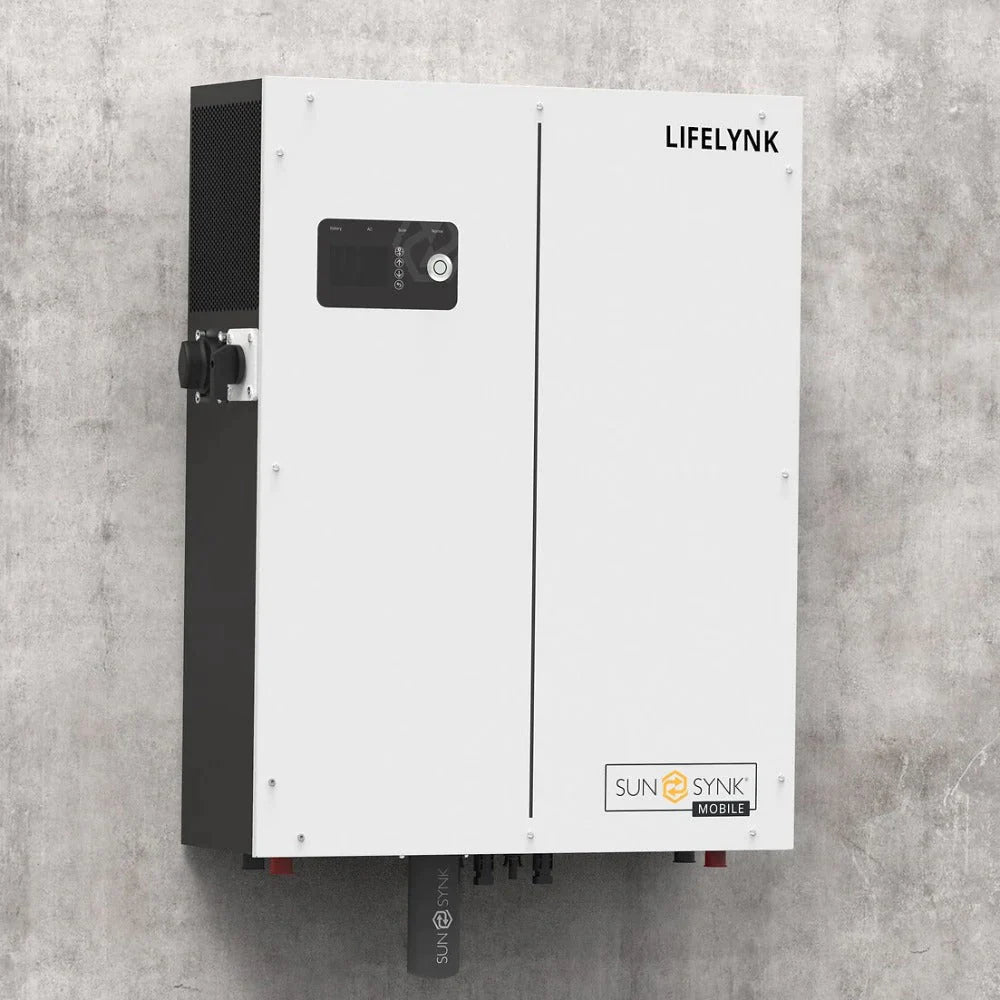

Sunsynk Lifelynk X - 3.6kW Hybrid Inverter, 3.8kWh Battery Storage

Sunsynk Lifelynk X - 3.6kW Hybrid Inverter, 3.8kWh Battery Storage

The new Sunsynk Lifelynk X 3.6kW LIFE3.6X-HYB Hybrid Inverter by Sunsynk Mobile is a true all-in-one, plug-and-play, expandable inverter that has been created to simplify and speed up installation. This inverter enables full control, visibility, and access to the system, making site-specific customisation easy.

The Sunsynk Lifelynk X 3.6kW LIFE Hybrid Inverter comes complete with everything you need to install this cutting-edge storage solution. In-built connection points give access to the Load, Grid, CT, and WiFi data logger ports, making it a true "plug and play" system.

This product is perfect for retrofitting into a current solar PV install. It would need to suit the power rating of the current solar array. The built-in battery is also expandable to a higher capacity at a later date if required. The Sunsynk Lifelynk X also has the ability to power an emergency power system in case of a power cut. It will also suit installation alongside an EV charger too.

Product Features:

  • Small and Mighty - An ideal solution for smaller properties, social housing and local government projects
  • Power Built-in - 3.6kW hybrid inverter, 3.84kWh LiFePO4 battery and a 4.5kW MPPT all in one compact unit
  • EPS Function - Includes option for 3.6kw Output for Essential Loads
  • Easy to Install - Everything you need included in one solution with easy access to ports and a wall mountable bracket
  • Plug and Play - Get up and running quickly
  • Convenient and Hassle-free - The Lifelynk has been designed with easy installation in mind

Technical Specifications:

  • Maximum Power Output - 3600w
  • Dimensions - 700.6 x 534.6 x 182.2mm
  • Weight - 57.4kg
To view pricing:
Data Sheets
View full details

Product Downloads: Default Title

User Manual Download
Datasheet Download

Product Specs: Default Title

Weight 57.4KG
Dimensions 54.36 × 18.22 × 70.06 cm
Rated Power 3600W
DC Start Up Voltage 150V
Warranty 5 Years
Max. Charging/Discharging Current 60A Charge, 80A Discharge
Battery Capacity 3.84kWh
