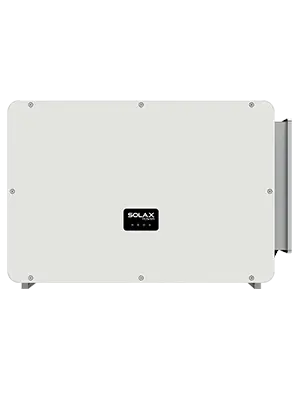

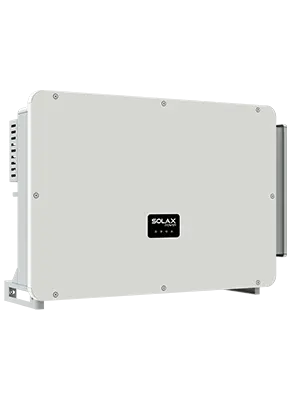

SolaX X3 Forth 150kW Three Phase String Inverter

SolaX X3 Forth 150kW Three Phase String Inverter

Regular price £4,721.70
Sale In Stock: Call to order

Experience the remarkable power of our high-efficiency solar inverter, reaching an impressive 99% efficiency.

Show More
View full details

Product Downloads: Default Title

Datasheet Download
User Manual Download
Quick Install Guide Download

Product Specs: Default Title

Max. PV input voltage 1100V
Max. PV input current 32A
No. of MPP trackers/Strings per MPP tracker 12/2
Dimensions (W*H*D) 985×660×327.5 mm
Net weight 87kg

Description

Experience the remarkable power of our high-efficiency solar inverter, reaching an impressive 99% efficiency. Maximize your energy generation with multiple features like 12 MPPTs, 150% PV oversizing input, and 110% overloading output.


Rest assured with reliable protection at every level, including AFCI protection, AC terminal temperature detection, SPD protection, and IP66 protection, ensuring your safety. Embrace intelligent capabilities like built-in export power control, remote maintenance, and 24-hour operation monitoring, offering seamless convenience. Discover the brilliance of smart solar panel I-V Curve Diagnosis and night-time reactive power compensation, optimizing your energy production. Plus, enjoy the benefits of a lightweight, compact design equipped with advanced heat dissipation technology, which makes the system more than 5% lighter and smaller. Unleash the true potential of our local energy solution, delivering efficient, safe, and convenient power generation for your needs.

Safety & Reliability

  • IP66 protection

  • AFCI protection (Optional)

  • AC terminal temperature detection

  • Both AC & DC SPDs (Type II) inside; Type I+II SPD (Optional)

More Energy Harvest

  • Max. efficiency up to 99

  • 180~1000Vdc MPPT voltage range

  • 12 MPPTs, 2 strings/MPP tracker

  • 150% PV oversizing input, 110% overloading output

  • Max. 32A MPPT current

Intelligence for Easy Maintenance and Economy

  • Built-in export power control

  • Remote setting and upgrading

  • 24-hour operation monitoring

  • Smart I-V Curve Diagnosis supported

  • Night-time reactive power compensation

  • Aluminum AC cable connection available

  • Power line communication (PLC) (Optional)

  • Fuse-free design with smart string current monitoring

  • Smart air cooling for extended fan lifetime

Downloads

Datasheet Download
User Manual Download
Quick Install Guide Download

Specifications

Max. PV input voltage 1100V
Max. PV input current 32A
No. of MPP trackers/Strings per MPP tracker 12/2
Dimensions (W*H*D) 985×660×327.5 mm
Net weight 87kg
